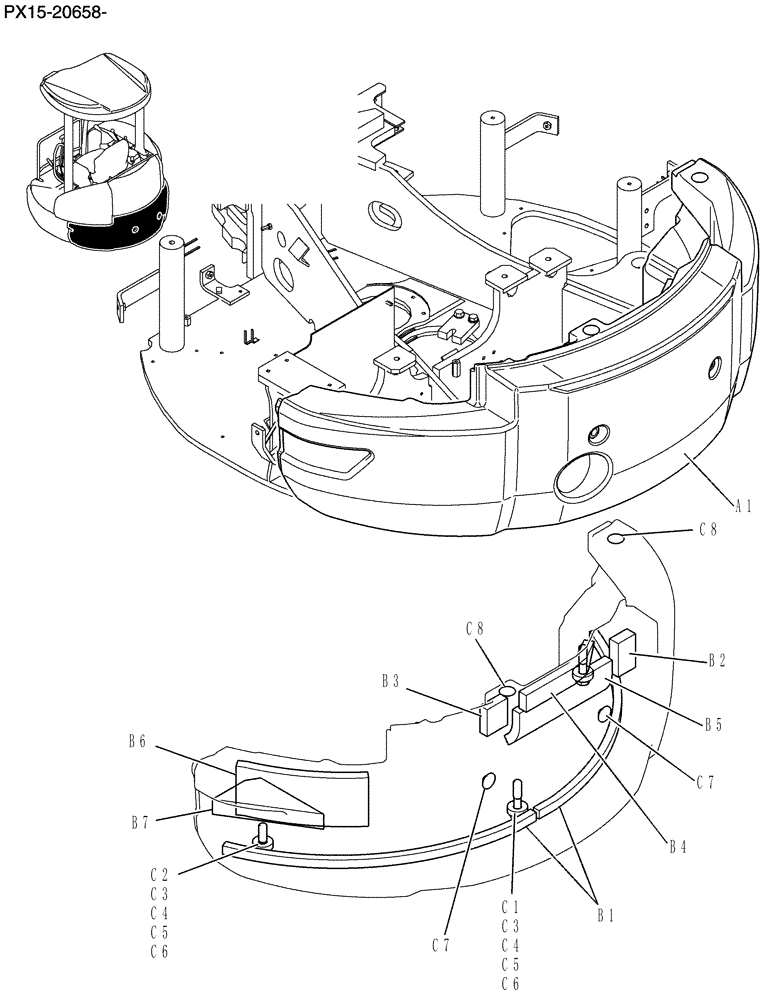

Запчасти Case CX36B (016-01[1Z83]) - COUNTERWEIGHT INSTAL (05) - SUPERSTRUCTURE
![Схема запчастей Case CX36B - (016-01[1Z83]) - COUNTERWEIGHT INSTAL (05) - SUPERSTRUCTURE](https://partsell.ru/storage/images/casece/255123.png)
b4
c4
c4
c5
b5
c3
b3
c6
c8
c6
c3
c7
b6
c8
b1
c1
b2
c5
c7
a1
c2
b7
PX60C00017F1
Counterweight
1шт.
a1
PX60C00014P1
COUNTERWEIGHT
1шт.
PW60C00018F1
Counterweight
1шт.
b1
PW60C01019P1
RUBBER
2шт.
b2
PW60C01020P1
FOAM INSULATION
1шт.
b3
PW60C01024P1
FOAM INSULATION
1шт.
b4
PW60C01026P1
FOAM INSULATION
1шт.
b5
PW60C01023P1
FOAM INSULATION
1шт.
b6
PW60C01027P1
FOAM INSULATION
1шт.
b7
PW60C01028P1
FOAM INSULATION
1шт.
PW60C00019F1
Counterweight
1шт.
c1
HS18C20090G1
BOLT
Cap
1шт.
c2
HS18C20065G1
BOLT
Cap
2шт.
c3
HY26Y21050G4
WASHER
3шт.
c4
PM60C01022D1
SHIM
(1. 0)
3шт.
c5
PM60C01022D2
SHIM,2.0mm Thk
3шт.
c6
PM60C01022D3
SHIM
(3. 2)
3шт.
c7
YT60C01007P1
PLUG
2шт.
c8
LE60C01028P1
PLATE
2шт.
