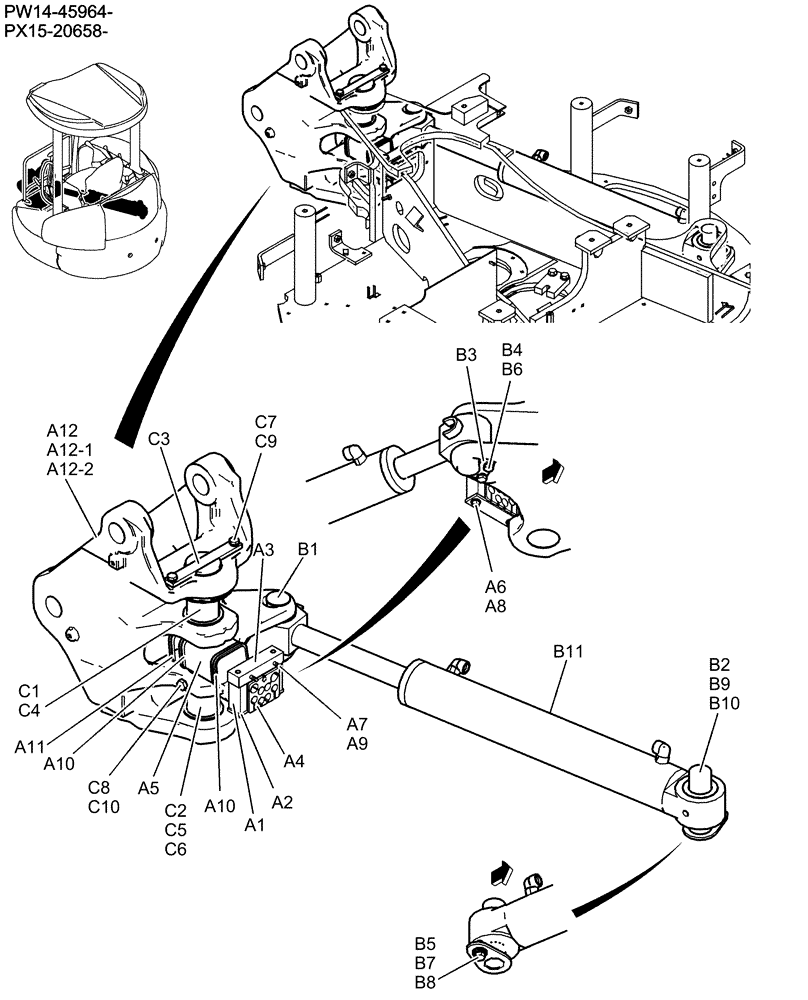

Запчасти Case CX36B (013-60[1]) - BRACKET ASSEMBLY, SWING (NIBBLER & BREAKER) (05) - SUPERSTRUCTURE

PX02B00148F1

Bracket Group, Swing

1шт.

a1

PX02B01268P1

Plate

2шт.

a2

PX02B01269P1

Plate

1шт.

a3

PX02B01270P1

PLATE

Plate

1шт.

a4

PX02B01266P1

GASKET

Rubber

1шт.

a5

PX02B01209P1

GROMMET

1шт.

a6

ZS18C10100

SCREW,Hex, M10 x 100mm

Cap

2шт.

a7

ZS28C10055

SCREW,Hex Socket Head, M10 x 55mm

Cap

2шт.

a8

ZW16H10000

WASHER

2шт.

a9

ZW26X10000

LOCK WASHER

2шт.

a10

PY01P01043D8

CABLE TIE,102mm L

2шт.

a11

PY01P01043D4

CABLE TIE,4.80mm W x 251mm L

1шт.

a12

PX02B00128F1

BRACKET

Swing

1шт.

a12-1

NSS

NOT SOLD SEPARAT

Bracket, Swing

1шт.

a12-2

PX02B01147P1

BUSHING,65mm ID x 75mm OD x 44mm L

1шт.

PX02B00147F1

Cylinder Instal

1шт.

b1

PX02B01241P1

PIN,48mm OD x 143mm L

1шт.

b2

PX02B01271P1

PIN

Pin

1шт.

b3

PM02B01220P1

PLATE

1шт.

b4

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

2шт.

b5

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

1шт.

b6

ZW26X10000

LOCK WASHER

2шт.

b7

ZW26X12000

LOCK WASHER

1шт.

b8

2418T12345

WASHER

1шт.

b9

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

2шт.

b10

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

4шт.

b11

PX01V00042F2

HYDRAULIC CYLINDER,Double Acting, 45mm Rod, 488mm Stroke

Cylinder Assy, Swing

1шт.

See(C.P.M)

1шт.

PX02B00149F1

Bracket Instal, Swing

1шт.

c1

PX02B01239P1

PIN,65mm OD x 163mm L

1шт.

c2

PX02B01275P1

PIN,65mm OD x 134mm L

1шт.

c3

PX02B01274P1

PLATE

Plate

1шт.

c4

PW02B01226P1

WASHER

1шт.

c5

2445R138D4

SEAL,65mm ID x 80mm OD x 4mm Thk

Dust

2шт.

c6

PW02B01224P1

SHIM,0.5mm Thk

1шт.

c7

ZS18C10025

SCREW,Hex, M10 x 25mm

2шт.

c8

HS18C12150G1

SCREW

Cap

1шт.

c9

ZW26X10000

LOCK WASHER

2шт.

c10

ZN18C12010

NUT

2шт.
