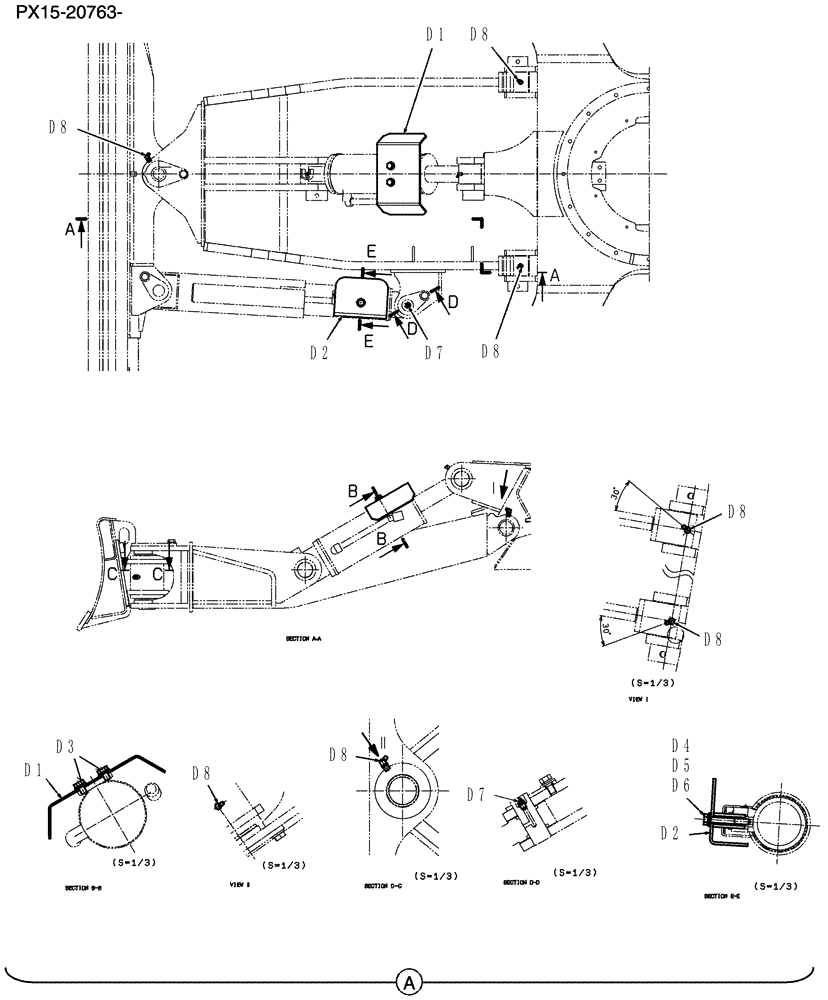

Запчасти Case CX36B (420-72[2]) - CYLINGER INSTAL (ANGLE DOZER) (04) - UNDERCARRIAGE

PX51B00090F1

Dozer

1шт.

a1

PX51B00091F1

DOZER

Dozer

1шт.

a1-1

PX51B00092P1

DOZER

Dozer

1шт.

a1-2

PW51B01106P1P1

Bushing

2шт.

a2

PX51B01113F1

FRAME

Frame

1шт.

a2-1

PX51B01114P1

FRAME

Frame

1шт.

a2-2

PW51B01039P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.

a3

PX51B01138P1

PIN

Pin

1шт.

a4

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

1шт.

PW51B00065F1

CYLINDER

Instal

1шт.

b2

PW51B01123P1

PLATE

Cover

1шт.

b3

PW51B01121P1

FRAME

Plate

1шт.

b4

PW52B01110P1

Plate

1шт.

b5

PY51B01034P2

PIN

Pin

1шт.

b6

PW51B01107P1

PIN

Pin

1шт.

b7

ZM32C12025

BOLT

Sems

2шт.

b8

ZS18C08020

SCREW,Hex, M8 x 20mm

1шт.

b9

ZW26X08000

LOCK WASHER

Lock

1шт.

b10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

b11

PW01V00052F2

HYDRAULIC CYLINDER

Cylinder

1шт.

See(C.P.M)

1шт.

PW51B00028F1

Dozer Instal

1шт.

c1

PW51B01028P1

PIN,40mm OD x 127mm L

2шт.

c2

ZS18C10080

SCREW,Hex, M10 x 80mm

Cap

2шт.

c3

ZN18C10008

NUT

4шт.

c4

PN54D01001D3

SEAL,40mm ID x 50mm OD x 4mm Thk

Dust

4шт.

c5

B16T0442D67

SHIM,65mm OD x 42mm ID x 1.2mm Thk

2шт.

c6

B16T0442D68

SHIM,65mm OD x 42mm ID x 1.6mm Thk

2шт.

c7

B16T0442D69

SHIM,65mm OD x 42mm ID x 2.3mm Thk

2шт.

PX51B00093F1

Dozer Group

1шт.

d1

PX51B01081P1

COVER

1шт.

d2

PW51B01115P1

COVER

Cover

1шт.

d3

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

2шт.

d4

ZW16H10000

WASHER

1шт.

d5

ZW26X10000

LOCK WASHER

1шт.

d6

ZS18C10075

SCREW,Hex, M10 x 75mm

Cap

1шт.

d7

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

1шт.

d8

ZG91V02000

LUBE NIPPLE,67 Degree x 1/8" PT

Grease

3шт.

PW13H00003F2

Hyd Lines, Cylinder

1шт.

e2

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

1шт.

e4

PW13H01003F1

45 ELBOW,45 Degree

Elbow

1шт.
