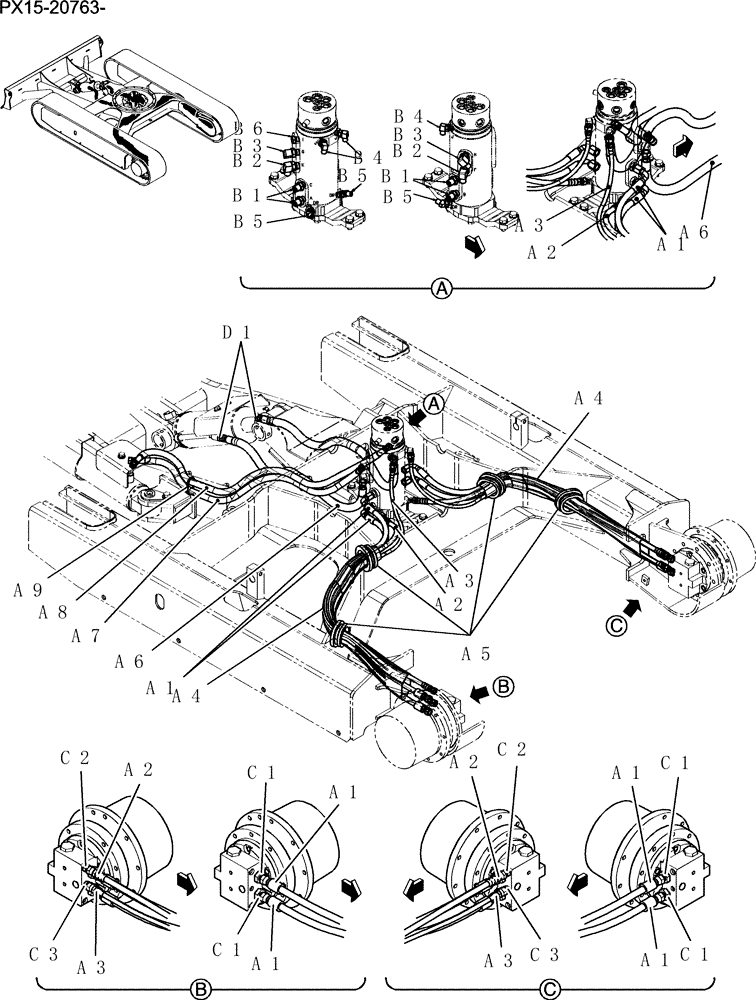

Запчасти Case CX36B (400-72[1Z83]) - HYD LINES, LOW (ANGLE DOZER) (04) - UNDERCARRIAGE

PX02H00010F1

Hyd Lines, Low

1шт.

a1

HX35L06115DY

HOSE,9.5mm ID x 1150mm L

4шт.

a2

HX23L04120DX

HOSE ASSY.,6.3mm ID x 1200mm L

2шт.

a3

PW02H01014D2

HOSE ASSY.

2шт.

a4

PW01P01003DC

HOSE,45mm ID x 730mm L

2шт.

a5

PX02H01001P1

GROMMET

4шт.

a6

PW02H01002DP

HOSE

2шт.

a7

PH02H01052D6

HOSE

1шт.

a8

PH02H01052D8

Hose

1шт.

a9

PY01P01043D5

CABLE TIE,301mm L

1шт.

PX19H00005F1

HYD TUBE

Hyd Lines, Swivel

1шт.

b1

HH25S06006G1

HYD CONNECTOR

4шт.

b2

HH35S04004G1

90 ELBOW

2шт.

b3

HH35S04006G1

90 ELBOW,90 Degree, 1/4" PF x 3/8" PF x 60mm L

2шт.

b4

HH35S04004G1

90 ELBOW

2шт.

b5

HH45S04004G1

45 ELBOW

2шт.

b6

ZE72X04000

PLUG

1шт.

PW12H00002F1

Hyd Lines, Propel

1шт.

c1

HH25S06008G1

HYD CONNECTOR

4шт.

c2

HH25S04004G1

HYD CONNECTOR

2шт.

c3

HH25S04002G2

HYD CONNECTOR

2шт.

PW13H00001F1

Hyd Lines, Cylinder

1шт.

d1

HH25S06006G1

HYD CONNECTOR

2шт.
