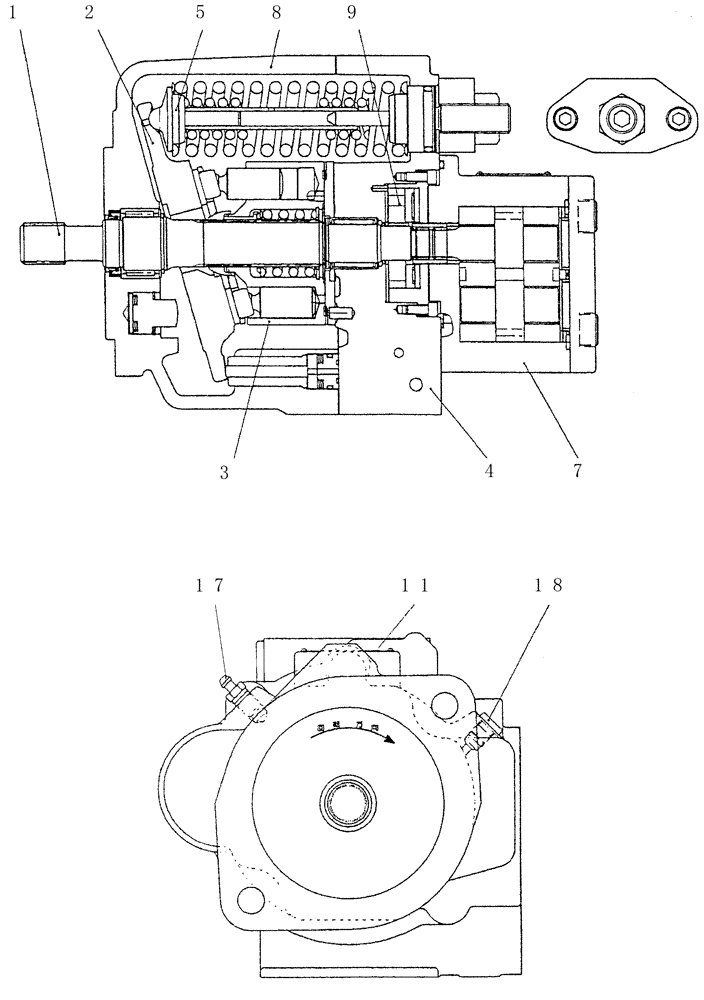

Запчасти Case CX36B (HC400-01[1]) - PUMP ASSEMBLY (35) - HYDRAULIC SYSTEMS

PX10V00013F1

HYDRAULIC PUMP

Pump Assy

1шт.

1

PX10V01004F1

SHAFT ASSY.

(See HC401-01-1)

1шт.

2

PX10V01005F1

BLOCK ASSY.

(See HC402-01-1)

1шт.

3

PX10V01006F1

ROTATOR

Rotary Assy (See HC403-01-1)

1шт.

4

PX10V01007F1

COVER ASSY

(See HC404-01-1)

1шт.

5

PX10V01008F1

SPRING

Assy (See HC405-01-1)

1шт.

7

PX10V00014F1

PUMP

Assy, Gear (See HC410-01-1)

1шт.

8

PX10V01010F1

TRANSMISSION HOUSING

Housing Assy (See HC408-01-1)

1шт.

9

PX10V00015F1

PUMP

Assy (See HC407-01-1)

1шт.

11

PY10V00009S011

IDENTITY PLATE

Name Plate

1шт.

17

PY10V00007S017

BREATHER

Breezer, Air

1шт.

18

2441U720S49

PLUG

1шт.
