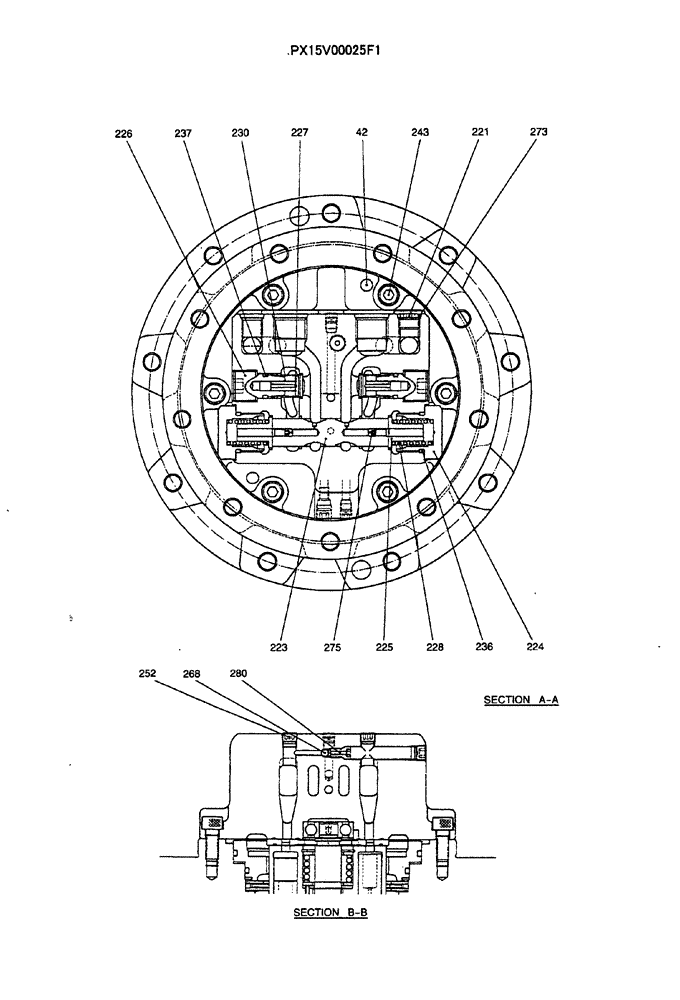

Запчасти Case CX36B (HC370-01[2]) - MOTOR ASSY (PROPELLING) (35) - HYDRAULIC SYSTEMS

PX15V00025F1

HYDRAULIC MOTOR

Assy (propelling)

1шт.

1

PX15V00025S001

HUB

1шт.

2

PX15V00025S002

SPINDLE

1шт.

3

PX15V00025S003

HOLDER

1шт.

4

PX15V00025S004

GEAR

1шт.

5

PX15V00025S005

GEAR

3шт.

6

PX15V00025S006

GEAR

Sun

1шт.

7

PX15V00025S007

GEAR

4шт.

9

PX15V00025S009

WASHER

2шт.

11

PX15V00025S011

WASHER

4шт.

12

PX15V00025S012

WASHER

7шт.

13

PX15V00025S013

COVER

1шт.

14

PX15V00025S014

COUPLING

1шт.

22

PX15V00025S022

NUT

1шт.

24

PX15V00025S024

BALL BEARING

2шт.

27

PX15V00025S027

NEEDLE BEARING

3шт.

28

PX15V00025S028

NEEDLE BEARING

4шт.

29

PX15V00025S029

RING

Retaining

3шт.

30

PX15V00025S030

RING

Retaining

4шт.

31

NSS

NOT SOLD SEPARAT

Seal, Floating

2шт.

33

YT15V00008S033

PLUG

1шт.

35

ZD11G17500

O-RING,174.30mm ID x 185.70mm OD x 5.70mm

1шт.

37

ZD12P01400

O-RING

3шт.

39

YR15V00002S121

PLUG

2шт.

40

PX15V00025S040

CAPSCREW

Cap

7шт.

41

2441U815S26

BALL

1шт.

42

PY15V00006S142

PIN

2шт.

43

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

44

PH15V00009S030

O-RING

1шт.

45

PX15V00025S045

RING

1шт.

47

PX15V00025S047

SET SCREW

2шт.

54

PY15V00006S154

PLUG

7шт.

102

PX15V00025S102

SHAFT

1шт.

103

PX15V00025S103

PLATE

1шт.

104

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

105

NSS

NOT SOLD SEPARAT

Piston

7шт.

106

NSS

NOT SOLD SEPARAT

Shoe

7шт.

107

PW15V00018S107

PLATE

1шт.

108

2441U831S108

BALL

1шт.

109

PX15V00025S109

PLATE

1шт.

110

2441U831S110

WASHER

2шт.

112

PX15V00025S112

PISTON

1шт.

113

PH15V00009S113

SPRING

8шт.

114

YJ15V00002S114

SPRING

1шт.

115

PX15V00025S115

PLATE

1шт.

116

YJ15V00002S116

PLATE

2шт.

132

2441U831S132

OIL SEAL

1шт.

135

PY15V00005S135

O-RING

1шт.

139

PH15V00009S139

O-RING

1шт.

145

2441U831S145

RING

Retaining

1шт.

149

YJ15V00002S149

BALL BEARING

1шт.

150

2441U831S150

BALL BEARING

1шт.

151

PH15V00009S151

ROLLER

3шт.

161

NSS

NOT SOLD SEPARAT

Piston

1шт.

162

NSS

NOT SOLD SEPARAT

Shoe

1шт.

163

PX15V00025S163

RING

1шт.

167

PY15V00006S167

SPOOL

Pivot

2шт.

177

PH15V00009S177

PIN

2шт.

190

PW15V00018S190

SPRING

1шт.

201

NSS

NOT SOLD SEPARAT

Flange

1шт.

221

2441U995S192

PLUG

1шт.

223

NSS

NOT SOLD SEPARAT

Spool

1шт.

224

PH15V00009S224

PLUG

2шт.

225

PH15V00009S225

SEAT

Stopper

2шт.

226

2441U831S126

PLUG

2шт.

227

2441U831S127

VALVE

Check

2шт.

228

PH15V00009S228

SPRING

2шт.

230

2441U831S130

SPRING

2шт.

236

ZD12P02200

O-RING

2шт.

237

ZD12P01200

O-RING

2шт.

241

2441U815S141

PIN

2шт.

243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

6шт.

252

YX15V00003S146

PLUG

3шт.

263

NSS

NOT SOLD SEPARAT

Spool

1шт.

264

NSS

NOT SOLD SEPARAT

Stopper

1шт.

266

PH15V00009S401

SPRING

1шт.

268

PH15V00009S268

BALL

1шт.

273

ZD12P01100

O-RING

1шт.

275

PH15V00009S275

ORIFICE

2шт.

279

YN15V00027S379

FILTER

Filter

1шт.

280

PH15V00009S280

PLUG

Plug

1шт.

299

2441U829S199

PLATE

Name Plate

1шт.

PX15V00025R100

REPAIR KIT

Consists Of Rev. 31x2

1шт.

PX15V00025R200

REPAIR KIT

Consists Of Rev 104x1, 105x7, 106x7

1шт.

PX15V00025R300

REPAIR KIT

Consists Of Rev 161x1, 162x1, 163x1

1шт.

PX15V00025R400

REPAIR KIT

Consists Of Rev 54x7, 201x1, 221x2, 223x1, 224x2, 225x2, 226x2, 227x2 228x2, 230x2, 236x2, 237x2, 252x4, 263x1, 264x1, 266x1, 268x1, 273x2, 275x4, 279x1, 280x1, 299x1

1шт.

PX15V00025R500

REPAIR KIT

Consists Of Rev. 201x1, 223x1

1шт.

PH15V00009R410

REPAIR KIT

Consists Of Rev. 263x1, 264x1

1шт.

PX15V00025R700

REPAIR KIT

Consists Of Rev. 31x2, 35x1, 37x3, 43x2, 44x1, 132x1, 135x1, 139x1, 236x2, 237x2, 273x2

1шт.
