(HC011-01 [1]) - VALVE ASSEMBLY, CONTROL (BOOM)

Запчасти Case CX36B (HC011-01 [1]) - VALVE ASSEMBLY, CONTROL (BOOM) (35) - HYDRAULIC SYSTEMS

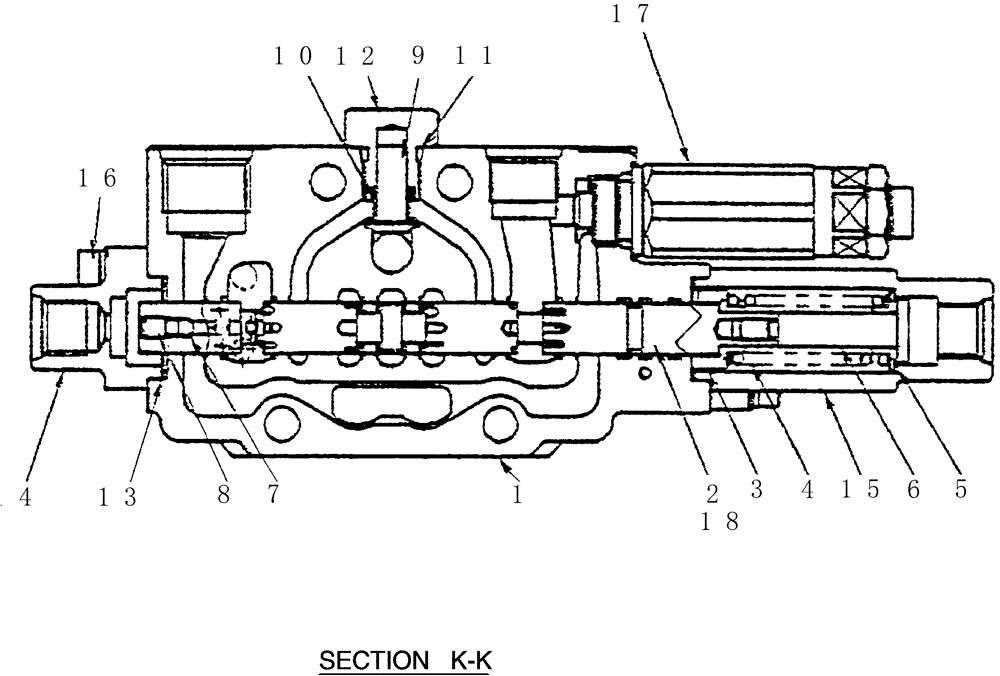

Схема запчастей Case CX36B - (HC011-01 [1]) - VALVE ASSEMBLY, CONTROL (BOOM) (35) - HYDRAULIC SYSTEMS
12
3
17
18
7
6
1
10
8
16
11
15
2
13
9
4
14
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX30V00057F1

VALVE SECTION

Assy, Control

1шт.

PX30V00057F2

VALVE SECTION

Assy

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool (F1 ONLY)

1шт.

3

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Seat, Spring

1шт.

6

NSS

NOT SOLD SEPARAT

Bolt, Spacer

1шт.

7

NSS

NOT SOLD SEPARAT

Ball

1шт.

8

NSS

NOT SOLD SEPARAT

Plug

1шт.

9

PH30V00003S006

POPPET

1шт.

10

PH30V00003S007

SPRING

1шт.

11

ZD12P01100

O-RING

1шт.

12

PH30V00003S009

PLUG

1шт.

13

PW30V01008S011

O-RING

2шт.

14

PM30V00021S012

COVER

1шт.

15

PM30V00021S013

COVER

1шт.

16

PM30V00021S014

SCREW

Cap

4шт.

17

PM22V00005F4

VALVE PRESSURE RELIE

Valve Assy, Overload Relief ( Seen HC019-01-1)

1шт.

18

NSS

NOT SOLD SEPARAT

Spool (F2 ONLY)

1шт.

PX30V00057R100

REPAIR KIT

Repair Kit Consists Of Item 2x1, 3x1, 4x1, 5x1, 6x1, 7x1, 8x1 (F1 ONLY)

1шт.

PX30V00057R200

REPAIR KIT

Repair Kit Consists Of Item 3x1, 4x1, 5x1, 6x1, 7x1, 8x1, 18x1 (F2 ONLY)

1шт.
