(HC006-01[1]) - VALVE ASSEMBLY CONTROL (SERVICE)

Запчасти Case CX36B (HC006-01[1]) - VALVE ASSEMBLY CONTROL (SERVICE) (35) - HYDRAULIC SYSTEMS

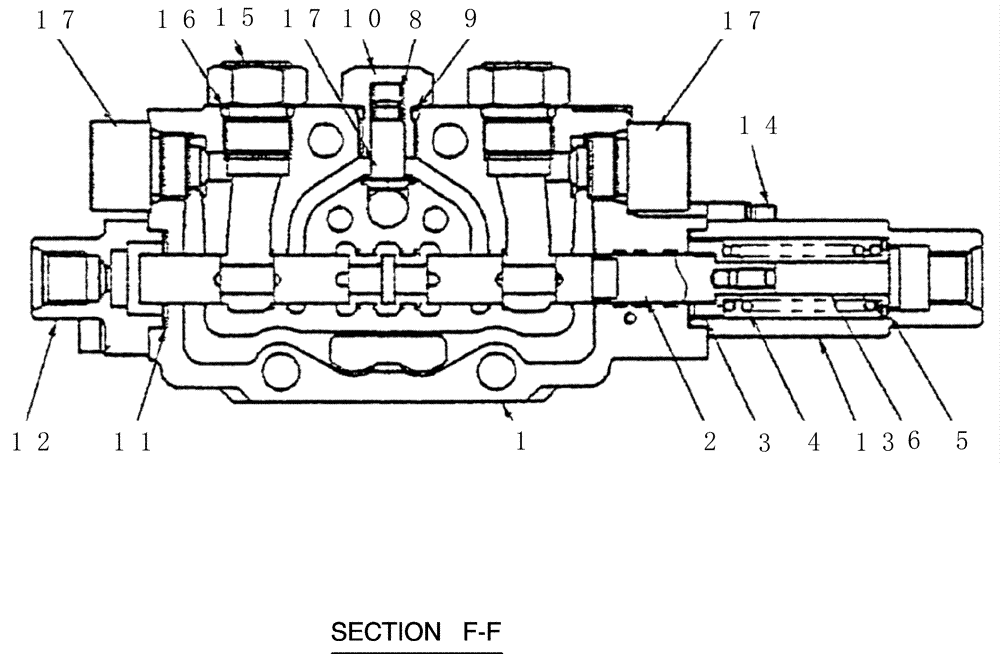

Схема запчастей Case CX36B - (HC006-01[1]) - VALVE ASSEMBLY CONTROL (SERVICE) (35) - HYDRAULIC SYSTEMS
16
11
9
4
8
2
10
14
17
6
13
3
1
5
15
12
17
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX30V00052F1

VALVE SECTION

Valve Assy, Control (Service)

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

NSS

NOT SOLD SEPARAT

Spool

1шт.

3

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

4

NSS

NOT SOLD SEPARAT

Spring

1шт.

5

NSS

NOT SOLD SEPARAT

Spring, Seat

1шт.

6

NSS

NOT SOLD SEPARAT

End, Spool

1шт.

7

PF30V00005S009

POPPET

Poppet

1шт.

8

PF30V00005S010

SPRING

Spring

1шт.

9

ZD12P01100

O-RING

O-ring

1шт.

10

PF30V00005S012

PLUG

Plug

1шт.

11

PW30V01008S011

O-RING

O-ring

2шт.

12

PM30V00021S012

COVER

Cover

1шт.

13

PM30V00021S013

COVER

Cover

1шт.

14

PM30V00021S014

SCREW

Capscrew

4шт.

15

PR30V00007S014

PLUG

Plug

2шт.

16

ZD12P01400

O-RING

O-ring

2шт.

17

PH50T00001F1

PLUG

Plug Assy

2шт.

PX30V00052R100

REPAIR KIT

Consists Of Item 3x1, 4x1, 5x1, 6x1, (For F3 only)

1шт.
