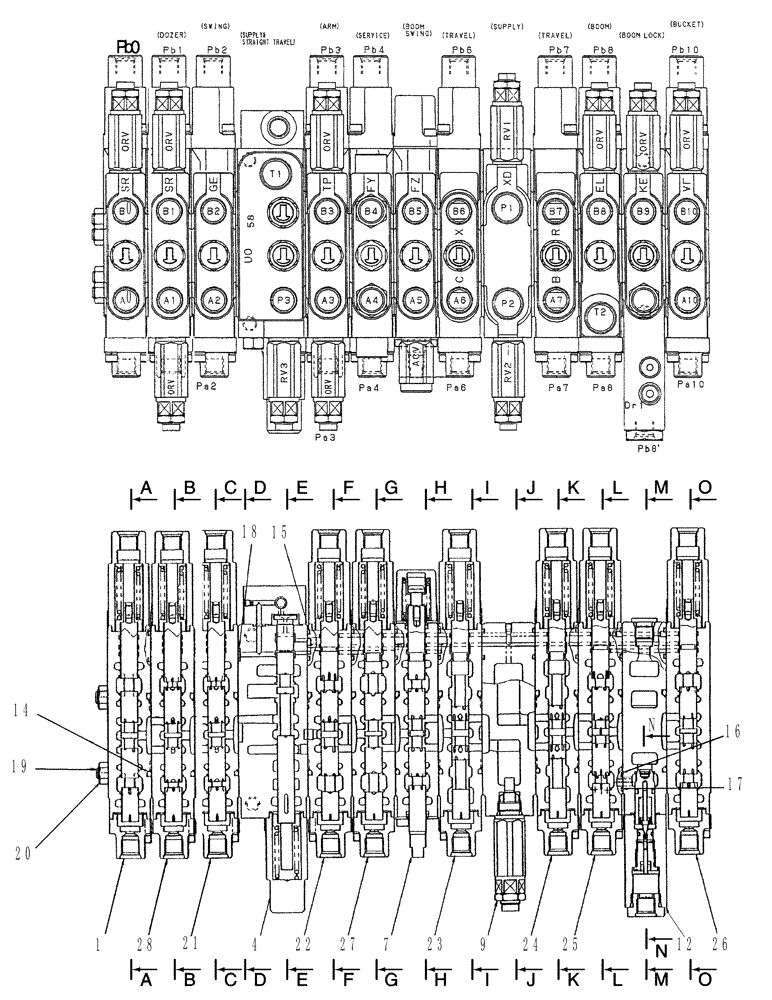

Запчасти Case CX36B (HC001-72[1]) - VALVE ASSEMBLY, CONTROL (ANGLE DOZER) (35) - HYDRAULIC SYSTEMS

PX30V00072F3

CONTROL VALVE

Control

1шт.

1

PX30V00048F1

VALVE SECTION

Assy, Control (dozer) ( See HC002-01-1)

1шт.

4

PX30V00050F1

VALVE SECTION

Assy, Control (supply & Straight ( See HC004-01-1)

1шт.

7

PX30V00053F1

VALVE SECTION

Assy, Control (boom Swing) ( See HC007-01-1)

1шт.

9

PX30V00055F1

VALVE SECTION

Assy, Control (supply) ( See HC009-01-1)

1шт.

12

PW30V01026F1

VALVE SECTION

Assy, Control (boom Lock) (See HC012-01-1)

1шт.

14

PH30V00003S015

O-RING

12шт.

15

ZD11P01800

O-RING

10шт.

16

ZD12P01000

O-RING

1шт.

17

ZD12P00900

O-RING

1шт.

18

ZD11P00600

O-RING

1шт.

19

PW30V00017S022

BOLT

4шт.

20

ZN18C08007

NUT

4шт.

21

PX30V00049F3

VALVE SECTION

Assy, Control (slewing) ( See HC003-01-1)

1шт.

22

PX30V00051F2

VALVE SECTION

Assy, Control (arm) ( See HC005-01-1)

1шт.

23

PX30V00054F2

VALVE SECTION

Assy, Control (travel Right) ( See HC008-01-1)

1шт.

24

PX30V00056F2

VALVE SECTION

Assy, Control (travel Left) ( See HC010-01-1)

1шт.

25

PX30V00057F2

VALVE SECTION

Assy, Control (boom) ( See HC011-01-1)

1шт.

26

PX30V00058F2

VALVE SECTION

Assy, Control (bucket) ( See HC013-01-1)

1шт.

27

PX30V00052F2

VALVE SECTION

Control (service) ( See HC006-01-1)

1шт.

28

PX30V00077F2

VALVE SECTION

Control (tilt Angle) ( See HC002-72-1)

1шт.
