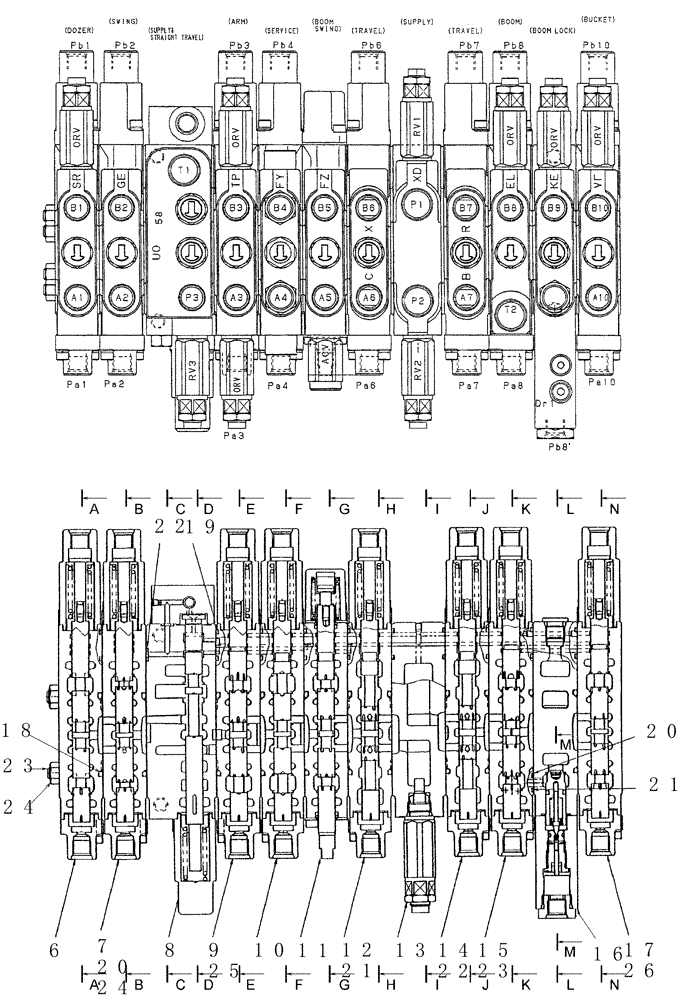

Запчасти Case CX36B (HC001-01[1]) - VALVE ASSEMBLY, CONTROL (35) - HYDRAULIC SYSTEMS

PX30V00041F1

CONTROL VALVE

Valve, Control

1шт.

PX30V00041F2

CONTROL VALVE

Control

1шт.

PX30V00041F3

CONTROL VALVE

Control

1шт.

1

PX30V00048F1

VALVE SECTION

Assy, Control (dozer) ( See HC002-01-1)

1шт.

2

PX30V00049F1

VALVE SECTION

Control (slewing) ( See HC003-01-1)

1шт.

3

PX30V00050F1

VALVE SECTION

Assy, Control (supply & Straight ( See HC004-01-1)

1шт.

4

PX30V00051F1

VALVE SECTION

Assy, Control (arm) ( See HC005-01-1)

1шт.

5

PX30V00052F1

VALVE SECTION

Assy, Control (service) ( See HC006-01-1)

1шт.

6

PX30V00053F1

VALVE SECTION

Valve Assy, Control (boom Swing) ( See HC007-01-1)

1шт.

7

PX30V00054F1

VALVE SECTION

Assy, Control (travel Right) ( See HC008-01-1)

1шт.

8

PX30V00055F1

VALVE SECTION

Assy, Control (supply) ( See HC009-01-1)

1шт.

9

PX30V00056F1

VALVE SECTION

Assy, Control (travel Left) ( See HC010-01-1)

1шт.

10

PX30V00057F1

VALVE SECTION

Assy, Control (boom) ( See HC011-01-1)

1шт.

11

PW30V01026F1

VALVE SECTION

Assy, Control (boom Lock) ( See HC012-01-1)

1шт.

12

PX30V00058F1

VALVE SECTION

Assy, Control (bucket) ( See HC013-01-1)

1шт.

13

PH30V00003S015

O-RING

11шт.

14

ZD11P01800

O-RING

10шт.

15

ZD12P01000

O-RING

1шт.

16

ZD12P00900

O-RING

1шт.

17

ZD11P00600

O-RING

1шт.

18

PW30V00017S022

BOLT

4шт.

19

ZN18C08007

NUT

4шт.

20

PX30V00049F2

VALVE SECTION

Assy, Control (slewing) ( See HC003-01-1)

1шт.

21

PX30V00054F2

VALVE SECTION

Assy, Control (travel Right) ( See HC008-01-1)

1шт.

22

PX30V00056F2

VALVE SECTION

Assy, Control (travel Left) ( See HC010-01-1)

1шт.

23

PX30V00057F2

VALVE SECTION

Assy, Control (boom) ( See HC011-01-1)

1шт.

24

PX30V00049F3

VALVE SECTION

Assy, Control (slewing) (F3 ONLY)

1шт.

25

PX30V00051F2

VALVE SECTION

Assy, Control (arm) (F3 ONLY)

1шт.

26

PX30V00058F2

VALVE SECTION

Assy, Control (bucket) (F3 ONLY)

1шт.
