(327-72[1]) - RELAY ASSEMBLY (ANGLE DOZER)

Запчасти Case CX36B (327-72[1]) - RELAY ASSEMBLY (ANGLE DOZER) (06) - ELECTRICAL

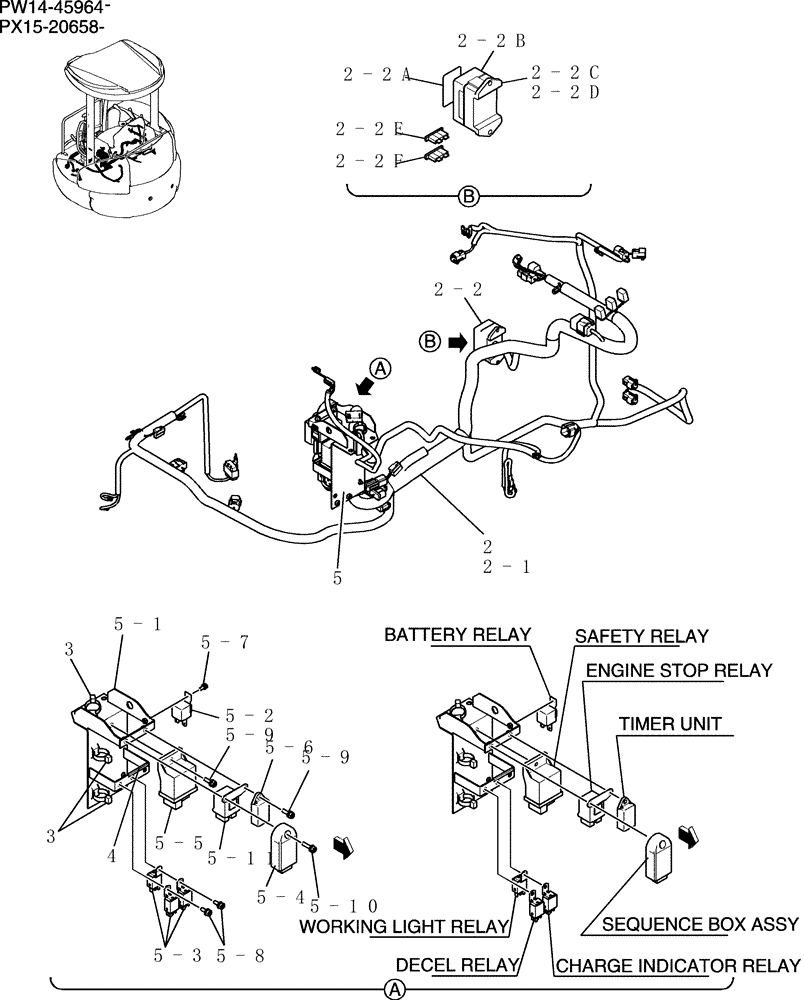

Схема запчастей Case CX36B - (327-72[1]) - RELAY ASSEMBLY (ANGLE DOZER) (06) - ELECTRICAL
3
2-2a
2-2c
5-7
5-4
4
5-9
5-6
5-3
5-2
2-2e
5-10
2-2
2
2-2b
5-5
5-9
2-2d
5-8
2-1
5
5-1
2-2f
5-11
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW24E00043F2

RELAY

(Angle Dozer)

1шт.

2

PW14E01054P1

WIRE HARNESS

Harness

1шт.

2-1

NSS

NOT SOLD SEPARAT

Harness

1шт.

2-2

PW73E00003F1

FUSE BOX

Fuse

1шт.

2-2a

PW73E01004P1

LABEL

1шт.

2-2b

2479U1458S2

COVER

1шт.

2-2c

2479U1458S1

BASE

1шт.

2-2d

2479U1458S3

BLOCK

1шт.

2-2e

2479R655S8

FUSE,10 Amp

2шт.

2-2f

YN73E00001S022

FUSE,30 Amp

7шт.

3

YN03E01001D5

CLIP

3шт.

4

YN22M01006D5

BUSHING,50mm L

1шт.

5

PX24E00008F2

KIT

Relay Assy

1шт.

5-1

PX24E01005P1

BRACKET

1шт.

5-2

PH24S00001P1

RELAY,12V, 70amp

(Used for Battery, Engine Stop, Light)

1шт.

5-3

PA24E01001P1

RELAY,12V - 20amp

(Used for Deceleration, Charge Indicator, Cab/Canopy Working Light, Horn, Slew/Swing Select, Slew/Swing Preservation, Nibbler Open/Close)

3шт.

5-4

PA24S00002P3

RELAY,DC12V

(Used for Sequence Box)

1шт.

5-5

PX24S00001P1

RELAY

(Used for Safety)

1шт.

5-6

PH25S00002P1

TIMER

1шт.

5-7

ZM61C05012

BOLT

Sems

1шт.

5-8

ZM61C06016

BOLT

Sems

2шт.

5-9

ZM61C06020

BOLT

Sems

2шт.

5-10

ZM61C06025

BOLT

Sems

1шт.

5-11

PX24S00003P1

RELAY

(Used for Engine Stop, Glow)

1шт.
