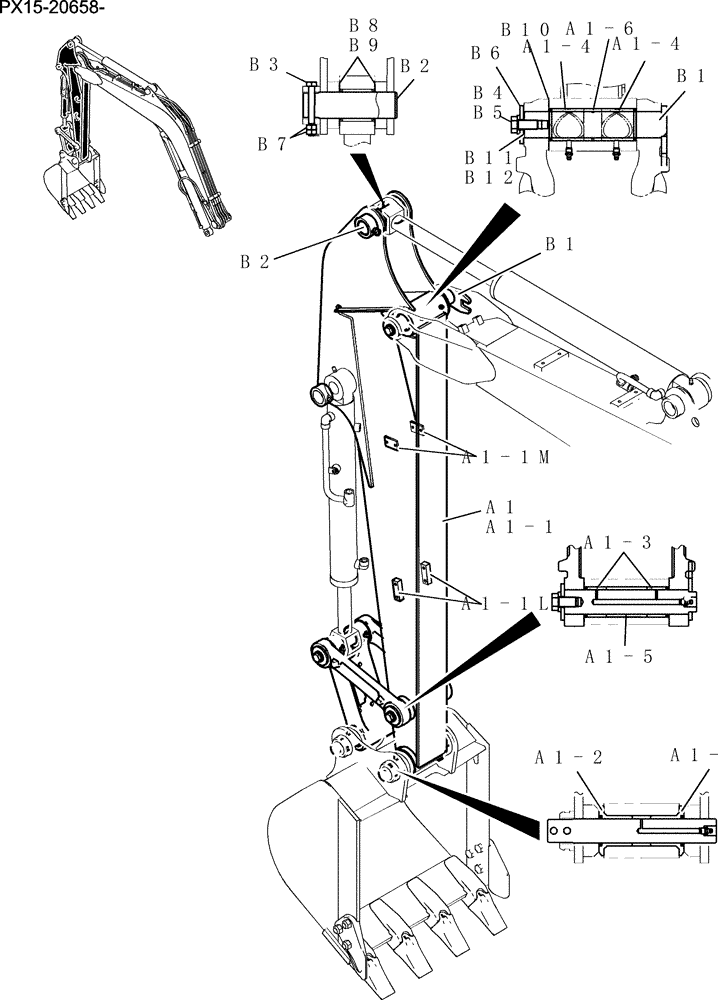

Запчасти Case CX36B (584-17[1]) - ARM ASSY, LONG 1.59M (4FT 3IN) Attachment

PX12B00077F1

Arm

1шт.

a1

PX12B00076F1

ARM

Arm

1шт.

a1-1

PX12B00075P4

ARM

Arm

1шт.

a1-1l

PV12B01227P1

BLOCK

Tapped

2шт.

a1-1m

PX12B01185P1

BLOCK

Tapped

2шт.

a1-2

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

a1-3

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

a1-4

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

a1-5

PW12B01208D1

COLLAR

1шт.

a1-6

PX12B01016P1

COLLAR

1шт.

PX12B00122F1

Arm Instal

1шт.

b1

PX12B01370P1

PIN

1шт.

b2

PX12B01205P1

PIN,45mm OD x 157mm L

1шт.

b3

HS18C10085G2

BOLT

Cap

1шт.

b4

ZS18C16035

SCREW,Hex, M16 x 35mm

Cap

1шт.

b5

ZW16H16000

WASHER

1шт.

b6

PW12B01242P1

WASHER

1шт.

b7

ZN18C10008

NUT

2шт.

b8

PR02B01108P1

SHIM,0.5mm Thk

(0. 5)

2шт.

b9

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

1шт.

b10

PW02B01239P1

SHIM,0.5mm Thk

1шт.

b11

PW12B01243D1

SHIM,0.5mm Thk

1шт.

b12

PW12B01243D2

SHIM,0.9mm Thk

2шт.
