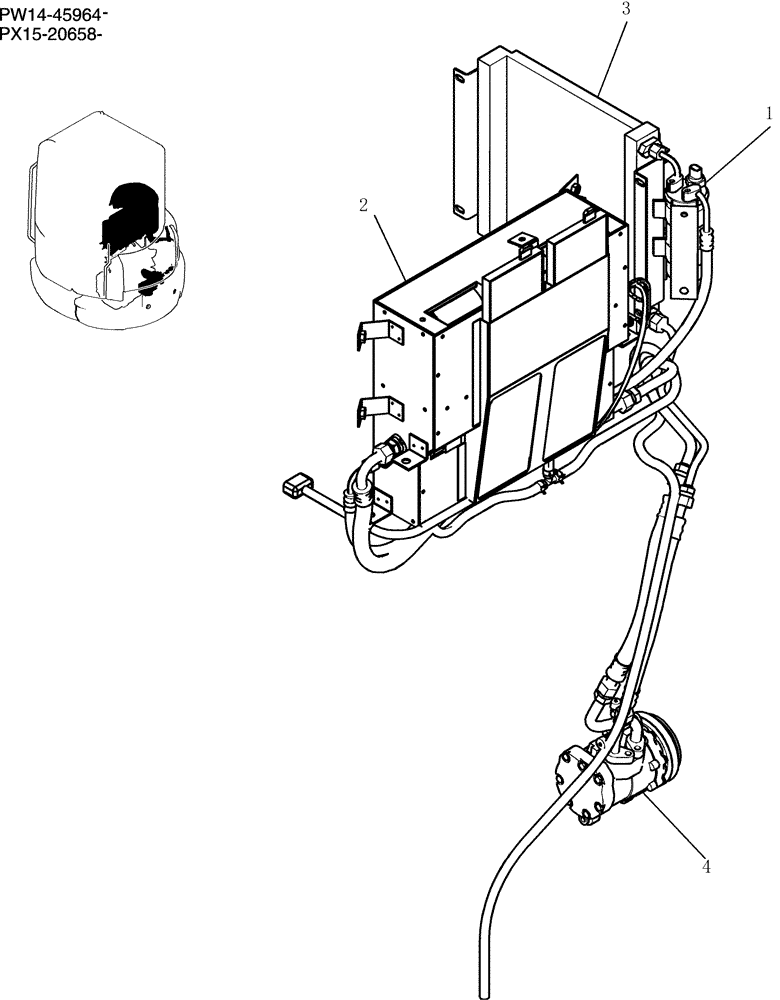

Запчасти Case CX36B (783-01[1]) - COOLER ASSY (05) - SUPERSTRUCTURE

.

Cooler PW20M00022F1

1шт.

1

NSS

NOT SOLD SEPARAT

Drier, Air PW96V00005F1 (See fig no.785-01-1)

1шт.

2

PH20M00016F1

COOLER

Assy (See fig no.787-01-1)

1шт.

3

PH20M01108F1

CONDENSER

Assy

1шт.

3-1

PH20M01108S009

ELECTRIC MOTOR

Not Illustrated – Condenser Fan

1шт.

4

PH91V00004F1

AIRCOND. COMPRESSOR

Assy

1шт.
