Запчасти Case CX36B (718-01[2]) - CONTROL LINES, REMOTE (COOLER) (05) - SUPERSTRUCTURE

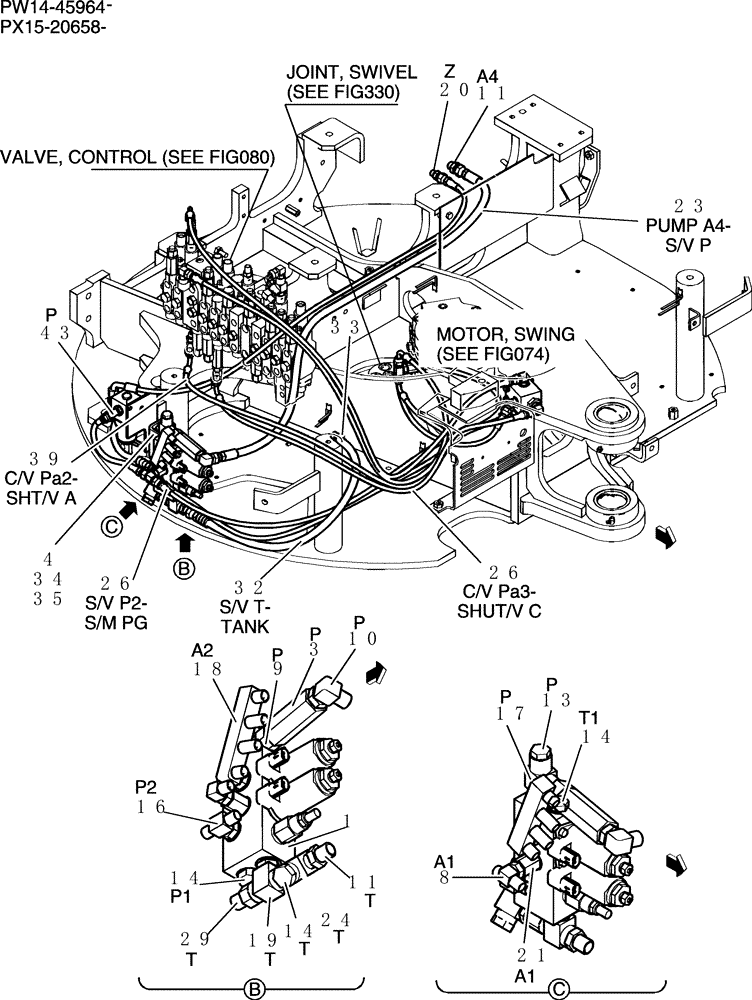

Схема запчастей Case CX36B - (718-01[2]) - CONTROL LINES, REMOTE (COOLER) (05) - SUPERSTRUCTURE
1
16
34
43
3
14
29
21
19
14
13
23
11
10
9
11
33
8
26
35
4
17
14
20
39
26
32
18
24

Артикул

Название

Примечание

Количество

PW64H00047F1

Control Lines, Valve

1шт.

1

PX35V00003F1

VALVE

Assembly, Solenoid (Used for Lever Lock, 2-speed Select)

1шт.

See(C.P.M)

1шт.

2

PH26V00001F1

VALVE

Valve Assy, Shuttle

1шт.

See(C.P.M)

1шт.

3

YN50V00020F1

HYDRAULIC OIL FILTER

Filter Assy, Inline

1шт.

4

PW64H01072P1

BRACKET

1шт.

5

ZS18C08020

SCREW,Hex, M8 x 20mm

2шт.

6

ZS18C06065

SCREW,Hex, M6 x 65mm

Cap

2шт.

7

ZW16H08000

WASHER

2шт.

8

HH35S04004G1

90 ELBOW

1шт.

9

2444Z3326

HYD CONNECTOR

Connector

1шт.

10

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

11

HH25S06006G1

HYD CONNECTOR

2шт.

13

ZE72X04000

PLUG

1шт.

14

ZE72X06000

PLUG

3шт.

16

HH55L04004G2

TEE

1шт.

17

PW64H01011P1

TEE

1шт.

18

PH64H01057P1

CONNECTION

Connector

1шт.

19

YN64H01048P1

TEE,90 Degree, PF 3/8" x PF 3/8", O-Ring

1шт.

20

HH25S04004G1

HYD CONNECTOR

1шт.

21

2444Z2525

HYD CONNECTOR

1шт.

23

HX25L06135DY

HOSE,9.5mm ID x 1350mm L

1шт.

24

HH55Q06006G1

TEE

1шт.

25

HX33L03040DX

HOSE,4.8mm ID x 400mm L

1шт.

26

HX33L03110DX

HOSE,4.8mm ID x 1100mm L

2шт.

27

HX33L03135DX

HOSE,4.8mm ID x 1350mm L

1шт.

28

HX33L03145DX

HOSE,4.8mm ID x 1450mm L

1шт.

29

HH25S04006G1

90 ELBOW

1шт.

30

HX23L03140DX

HOSE,4.8mm ID x 1400mm L

1шт.

32

PW68H01023D9

HOSE,9.5mm ID x 620mm L

1шт.

33

ZC16X01800

CLIP

1шт.

34

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

2шт.

35

ZW16H10000

WASHER

2шт.

39

HX33L03120DX

HOSE,4.8mm ID x 1200mm L

1шт.

40

HH45S04004G1

45 ELBOW

1шт.

41

ZW16H06000

WASHER

4шт.

42

YJ35V00004F2

SOLENOID VALVE

Valve Assy, Solenoid

1шт.

See(C.P.M)

1шт.

43

HH35S04004G2

90 ELBOW

1шт.

44

HX24L04028DX

HOSE

1шт.

45

HX22L04028DX

HOSE,6.3mm ID x 280mm L

1шт.

46

PH64H01053P1

BRACKET

1шт.

47

HX34L04130DX

HOSE,6.3mm ID x 1300mm L

1шт.

48

ZS18C06016

SCREW,Hex, M6 x 16mm

Cap

2шт.

Выбрано товаров: 45
