(582-17[1]) - ARM ASSY, STD 1.32M (4FT 4IN)

Запчасти Case CX36B (582-17[1]) - ARM ASSY, STD 1.32M (4FT 4IN) Attachment

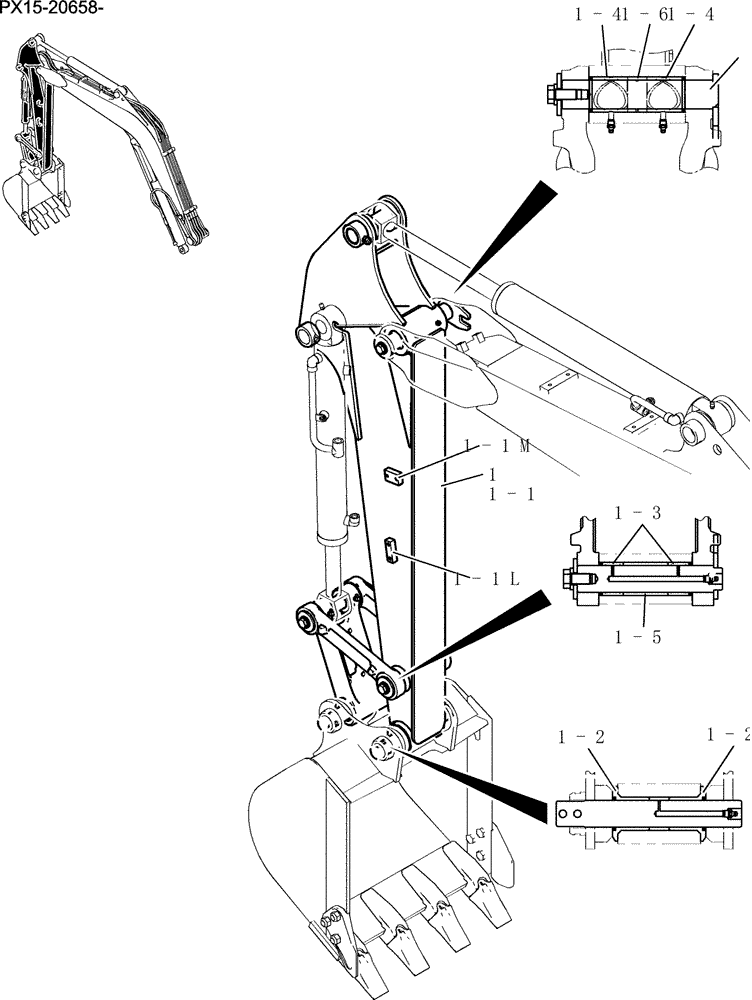

Схема запчастей Case CX36B - (582-17[1]) - ARM ASSY, STD 1.32M (4FT 4IN) Attachment
1-1m
1-4
1-1l
1-1
1-4
1-2
1-5
1-6
1
1-3
1-2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PX12B00069F1

Arm Assy

1шт.

1

PX12B00070F1

ARM ASSY.

1шт.

1-1

PX12B00071P3

Arm

1шт.

1-1l

PV12B01227P1

BLOCK

Tapped

2шт.

1-1m

PX12B01185P1

BLOCK

Tapped

2шт.

1-2

PW12B01237P2

BUSHING,40mm ID x 82mm OD x 55mm L

2шт.

1-3

PW12B01209P2

BUSHING,45mm ID x 50mm OD x 31.5mm L

2шт.

1-4

PX12B01177P2

BUSHING,45mm ID x 55mm OD x 55mm L

2шт.

1-5

PW12B01208D1

COLLAR

1шт.

1-6

PX12B01016P1

COLLAR

1шт.
