(712-01[1]) - POWER TAKE-OFF ASSY (COOLER)

Запчасти Case CX36B (712-01[1]) - POWER TAKE-OFF ASSY (COOLER) (05) - SUPERSTRUCTURE

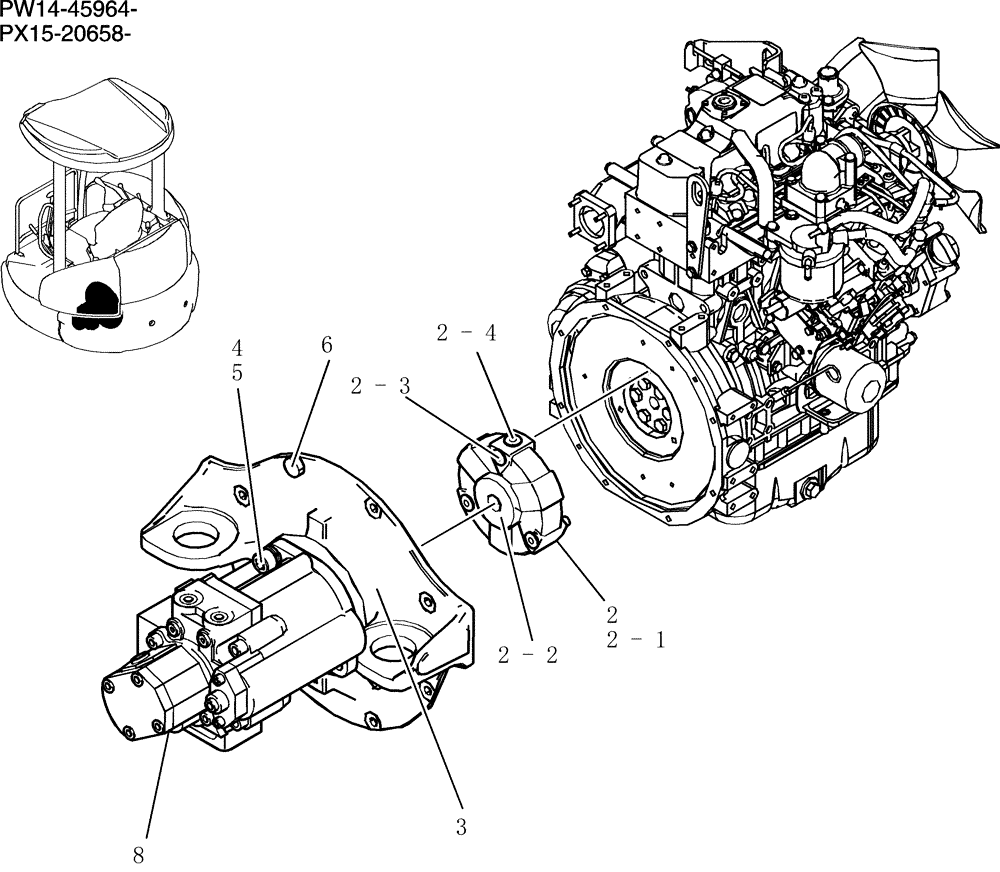

Схема запчастей Case CX36B - (712-01[1]) - POWER TAKE-OFF ASSY (COOLER) (05) - SUPERSTRUCTURE
6
8
2
4
3
2-1
2-2
2-4
2-3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW30P00006F1

Power Take-off

1шт.

2

PW30P01007F1

COUPLING

Assy

1шт.

2-1

PW30P01002S001

COUPLING

1шт.

2-2

PW30P01002S002

HUB

1шт.

2-3

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

Cap

3шт.

2-4

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

Cap

3шт.

3

PW30P01005P2

BRACKET

Bracket

1шт.

4

PV17M01003D1

SCREW

Cap

2шт.

5

ZW16K12000

WASHER

2шт.

6

ZS18C10025

SCREW,Hex, M10 x 25mm

8шт.

8

PX10V00012F1

HYDRAULIC PUMP

Pump, Hyd

1шт.

See(C.P.M)

1шт.
