(705-01A[1]) - ENGINE INSTAL (COOLER)

Запчасти Case CX36B (705-01A[1]) - ENGINE INSTAL (COOLER) (05) - SUPERSTRUCTURE

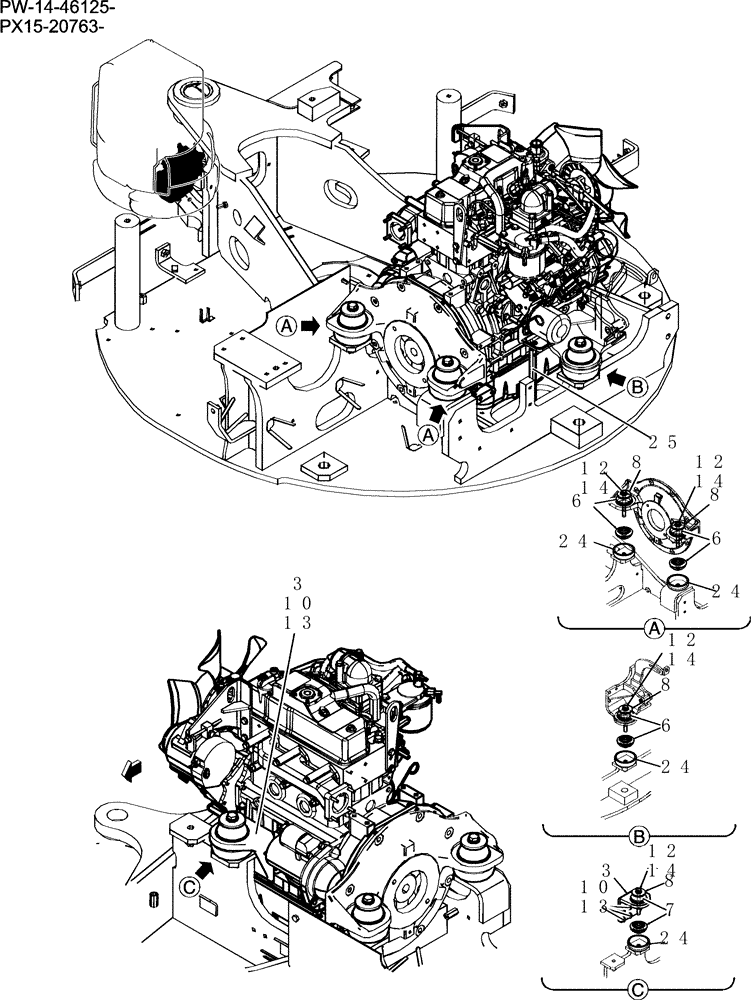

Схема запчастей Case CX36B - (705-01A[1]) - ENGINE INSTAL (COOLER) (05) - SUPERSTRUCTURE
8
8
6
14
24
12
13
10
24
25
24
24
12
10
13
7
14
14
8
3
12
12
8
6
6
3
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW02P00027F1

Engine Instal (cooler)

1шт.

PW02P00018F1

ENGINE

Assy (See fig no. 020-01-1)

1шт.

PW02P00028F1

Engine Instal

1шт.

3

PW02P01056P1

BRACKET

1шт.

6

PW02P01054D1

RUBBER MOUNTING

6шт.

7

PW02P01054D2

RUBBER MOUNTING

2шт.

8

PW01P01022P1

WASHER

4шт.

10

ZS18C10025

SCREW,Hex, M10 x 25mm

4шт.

12

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

13

ZW16H10000

WASHER

4шт.

14

ZW16H12000

WASHER

4шт.

24

PW02P01041P1

COVER

4шт.

25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.
