(242-01[1]) - GUARD INSTAL (CAB)

Запчасти Case CX36B (242-01[1]) - GUARD INSTAL (CAB) (05) - SUPERSTRUCTURE

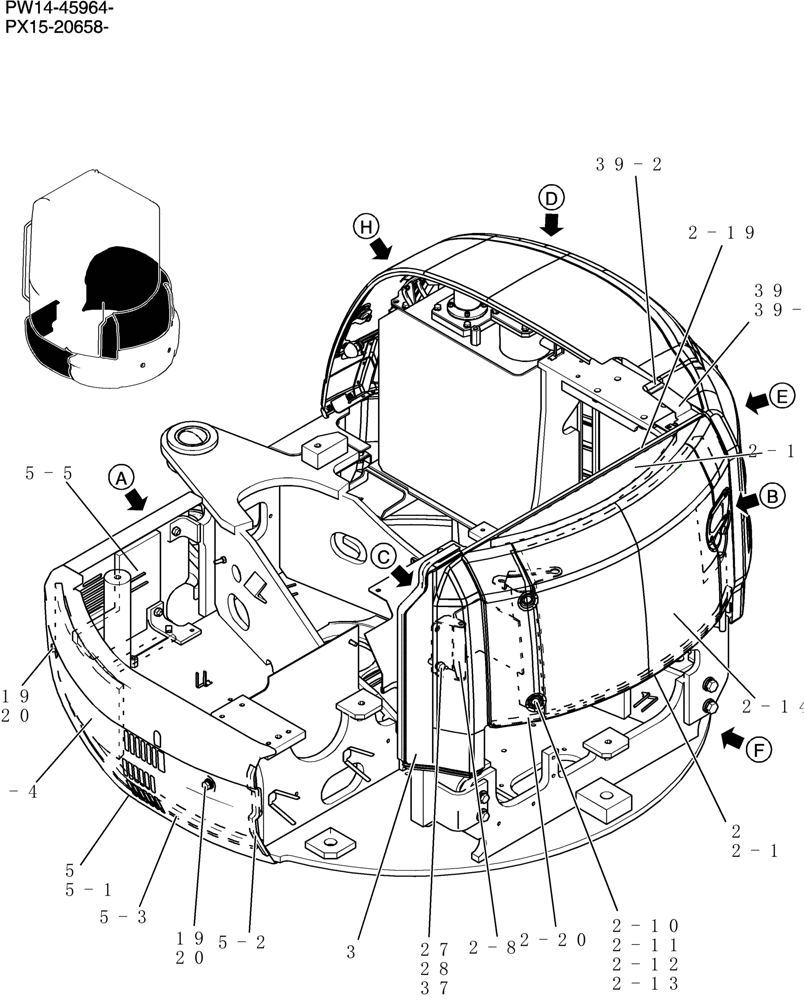

Схема запчастей Case CX36B - (242-01[1]) - GUARD INSTAL (CAB) (05) - SUPERSTRUCTURE
2-1
3
2-12
2-10
37
19
19
20
5-3
2-19
5-5
28
2
39
2-13
2-8
2-14
5-2
39-1
5-4
20
2-20
5-1
5
2-15
2-11
27
39-2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW21C00033F1

Guard Instal (cab)

1шт.

2

PW22C00021F1

ENGINE HOOD

Bonnet Assy

1шт.

2-1

PW22C01148P1

ACCESS COVER

Bonnet

1шт.

2-8

PW22C01161P2

CHECK VALVE

Hinge

1шт.

2-10

PW21C01413P1

CAPSCREW

SCREW Cap

2шт.

2-11

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

2-12

ZW26X08000

LOCK WASHER

Lock

2шт.

2-13

ZN18C08007

NUT

M08x1.25mm

2шт.

2-14

PW22C01159P1

FOAM INSULATION

1шт.

2-15

PW22C01130P1

FOAM INSULATION

1шт.

2-19

YR21C01165D8

WEATHERSTRIP

1шт.

2-20

YN21C01712DD

WEATHERSTRIP

1шт.

3

PW21C01823F1

COVER ASSY

1шт.

5

PW21C01804F1

COVER ASSY

1шт.

5-1

PW21C01790P1

COVER ASSY

1шт.

5-2

PM21C01233P1

RUBBER

1шт.

5-3

PM21C01152DV

WEATHERSTRIP

1шт.

5-4

PW21C01683P1

FOAM INSULATION

1шт.

5-5

PW21C01684P1

FOAM INSULATION

1шт.

19

PA41C01005D3

BOLT

Sems

2шт.

20

YT21C01187P2

WASHER

2шт.

27

ZW26X12000

LOCK WASHER

2шт.

28

2418T10357

WASHER

2шт.

37

ZS18C12030

SCREW,Hex, M12 x 30mm

Cap

2шт.

39

PW21C01702F1

COVER ASSY

Cover Assy

1шт.

39-1

PW21C01732P3

COVER

1шт.

39-2

LE21C01070DL

WEATHERSTRIP

1шт.
