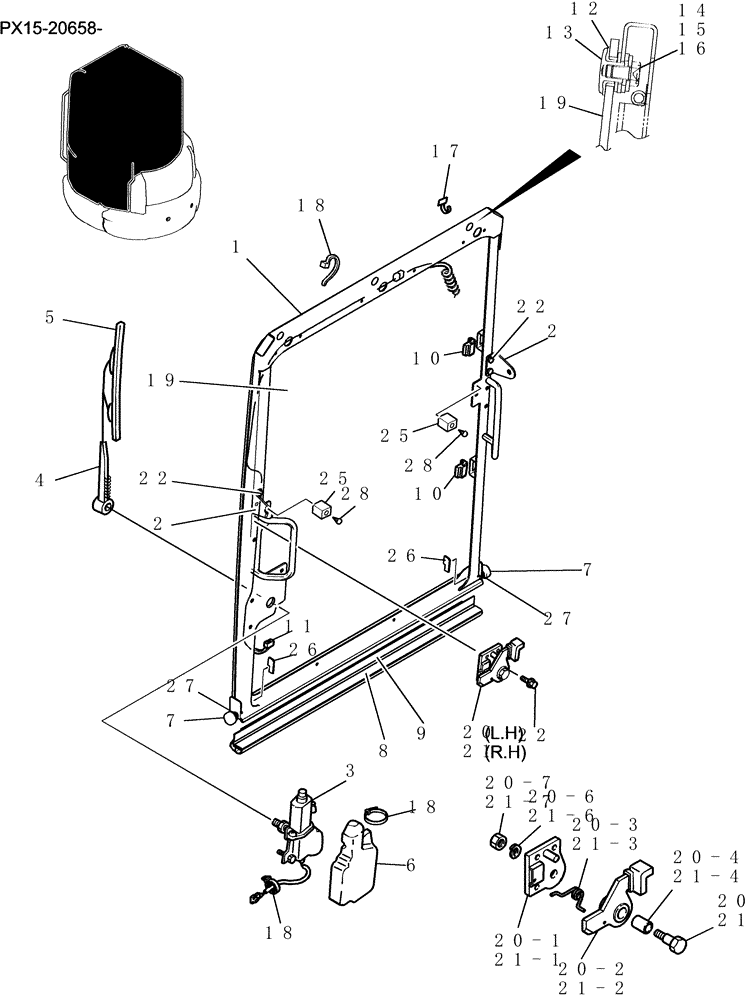

Запчасти Case CX36B (190-01[1]) - WINDOW ASSEMBLY, FRONT (05) - SUPERSTRUCTURE

PW50C00002F1

WINDOW

Assembly - Inc. Frame

1шт.

1

PW50C01007P1

FRAME ASSY

1шт.

2

PW50C01008P1

BRACKET

2шт.

3

PM76S00001F1

WIPER MOTOR

MOTOR, WIPER

1шт.

4

PM53C00001P1

WIPER ARM

1шт.

5

YR53C01001P1

WIPER BLADE

1шт.

6

YT02C01125P1

COVER

1шт.

7

YT50C01024P1

ROLLER

2шт.

8

PW50C01017P2

SEAL, GLASS

Seal

1шт.

9

PW50C01018P1

SEAL,684mm L

1шт.

10

YT50C01023P1

RUBBER

4шт.

11

YT02C01106P1

HARNESS

1шт.

12

YT50C01022P1

SEAL,15mm ID x 30mm OD x 2mm Thk

5шт.

13

YT50C01020P1

RETAINER

3шт.

14

YT02C01241D1

BOLT

3шт.

15

YR21C01161P1

WASHER,9mm ID x 22mm OD x 2.3mm Thk

3шт.

16

ZW16X14000

WASHER

3шт.

17

YT22A01001P1

STRAP

1шт.

18

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

Strap

11шт.

19

PW50C01001P1

GLASS

1шт.

20

PM02C01447F1

LOCK ASSY

(L. H)

1шт.

20-1

PM02C01402P1

BRACKET

1шт.

20-2

PM02C01302P1

PLATE

1шт.

20-3

PM02C01303P1

SPRING

1шт.

20-4

2405U104D014020

BUSHING

1шт.

20-5

PM02C01395P1

PIN

1шт.

20-6

ZW26X10000

LOCK WASHER

1шт.

20-7

ZN18C10008

NUT

1шт.

21

PM02C01448F1

LOCK ASSY

(R. H)

1шт.

21-1

PM02C01403P1

BRACKET

1шт.

21-2

PM02C01306P1

PLATE

1шт.

21-3

PM02C01307P1

SPRING

1шт.

21-4

2405U104D014020

BUSHING

1шт.

21-5

PM02C01395P1

PIN

1шт.

21-6

ZW26X10000

LOCK WASHER

1шт.

21-7

ZN18C10008

NUT

1шт.

22

ZM66C06020

BOLT

Sems

10шт.

25

PM50C01051P1

STOP

Stopper

2шт.

26

PM50C01042P1

SHIM,1.0mm Thk

2шт.

27

PM50C01052P1

SHIM,1.0mm Thk

4шт.

28

YT51C01058D1

SCREW

Tapping

2шт.
