(180-01[2]) - CAB ASSEMBLY

Запчасти Case CX36B (180-01[2]) - CAB ASSEMBLY (05) - SUPERSTRUCTURE

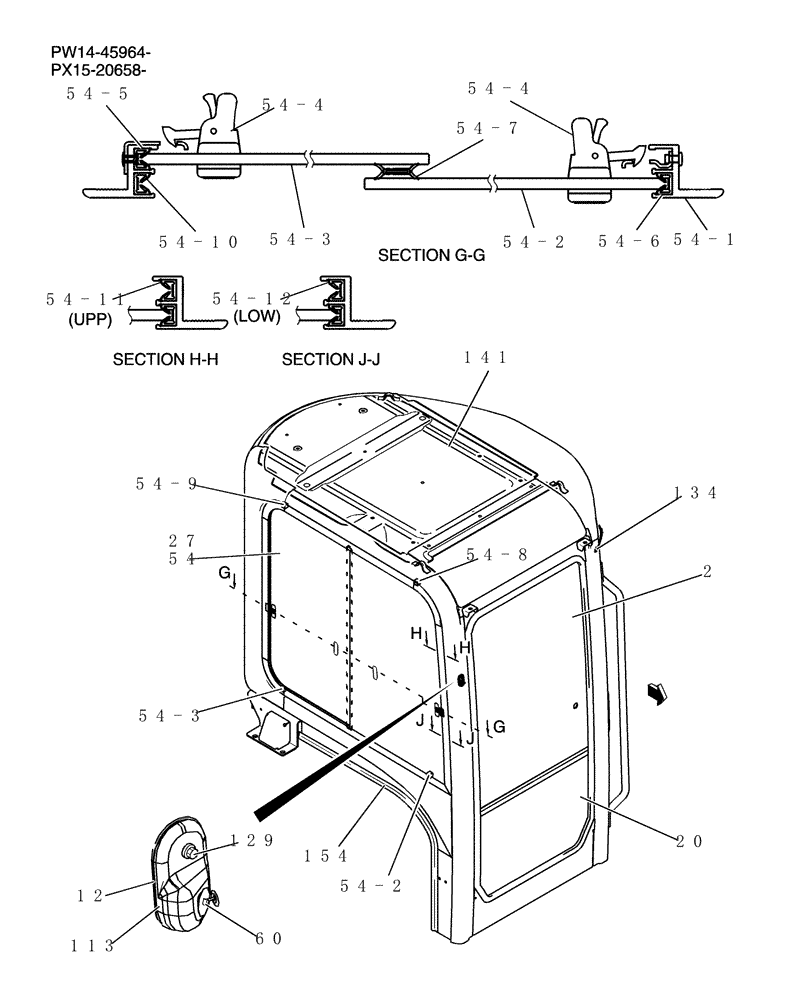

Схема запчастей Case CX36B - (180-01[2]) - CAB ASSEMBLY (05) - SUPERSTRUCTURE
134
54-2
54-5
54-2
54-1
54-11
20
129
54-4
27
141
54-10
54-3
54
12
54-6
2
113
54-8
154
54-4
54-7
54-12
54-9
60
54-3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

2

PW50C00002F1

WINDOW

Assembly - Inc. Frame (See Fig no.190-01-1)

1шт.

12

PM02C01475P1

RUBBER

1шт.

20

PW02C01117P1

GLASS

1шт.

27

PM02C01172D3

SEAL,7mm W x 4.8mm H x 4000mm L

1шт.

54

PW02C01114F1

GLASS

Sash Assy

1шт.

54-1

PW02C01114S001

FRAME ASSY

1шт.

54-2

PW02C01224P1

GLASS

1шт.

54-3

PW02C01225P1

GLASS

1шт.

54-4

PW02C01114S004

LOCK ASSY

2шт.

54-5

PW02C01114S005

SEAL

1шт.

54-6

PW02C01114S006

SEAL

1шт.

54-7

PW02C01114S007

SEAL

1шт.

54-8

PW02C01114S008

STOP

Stopper

2шт.

54-9

PW02C01114S009

STOP

Stopper

2шт.

54-10

PW02C01114S010

SEAL

1шт.

54-11

PW02C01114S011

SEAL

1шт.

54-12

PW02C01114S012

SEAL

1шт.

60

PM02C01480P1

NOZZLE

1шт.

113

PM02C01474P1

BASE PLATE

1шт.

129

ZM46C05020

BOLT (STEP)

Sems

1шт.

134

PW02C01162P1

GROMMET

1шт.

141

PW02C01295P2

FOAM INSULATION

1шт.

154

PW02C01353P1

WEATHERSTRIP

Weather

1шт.
