(35.106.AD[02]) - PUMP, ASSY, HYDRAULIC

Запчасти Case CX36B (35.106.AD[02]) - PUMP, ASSY, HYDRAULIC (35) - HYDRAULIC SYSTEMS

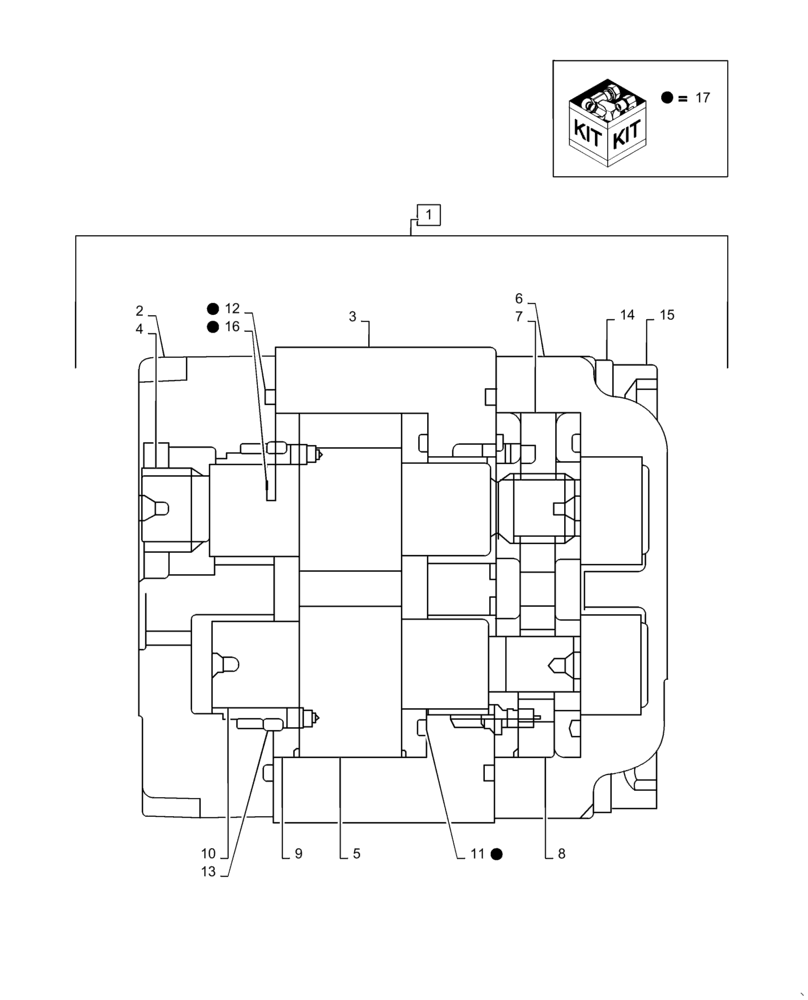

Схема запчастей Case CX36B - (35.106.AD[02]) - PUMP, ASSY, HYDRAULIC (35) - HYDRAULIC SYSTEMS
9
2
10
17
15
13
7
1
8
5
4
3
17
11
17
6
16
12
17
14
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PB10V00004F1

HYDRAULIC PUMP

Gear, Incl 1 - 16

1шт.

2

NSS

NOT SOLD SEPARAT

Cover, Incl in 1

1шт.

3

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Gear, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Plate, Incl in 1

4шт.

10

NSS

NOT SOLD SEPARAT

Bushing, Incl in 1

4шт.

11

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1, 17

4шт.

12

NSS

NOT SOLD SEPARAT

Gasket, Incl in 1, 17

2шт.

13

NSS

NOT SOLD SEPARAT

Ball, Incl in 1

4шт.

14

NSS

NOT SOLD SEPARAT

Washer, Incl in 1

4шт.

15

ZS23C12075

SCREW,Hex Socket Head, M12 x 75mm

Cap

4шт.

16

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1, 17

1шт.

17

PB10V00004R100

REPAIR KIT

Incl 16 (Qty 1), 12 (Qty 2), 11 (Qty 4)

1шт.
