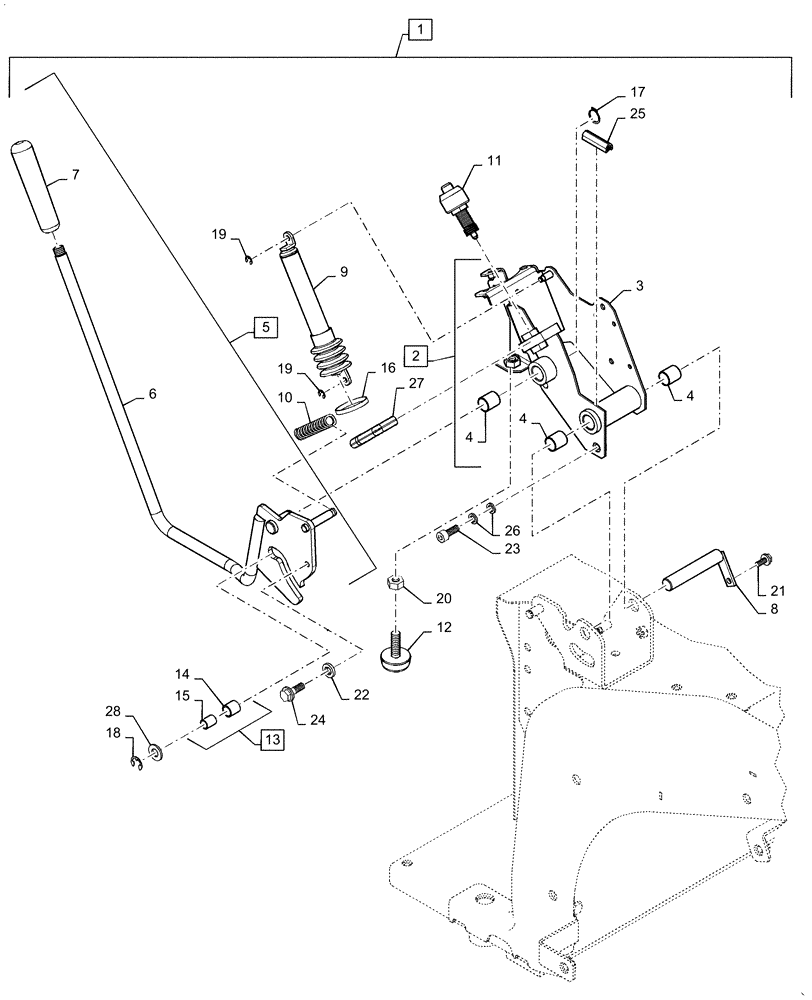

Запчасти Case CX36B (90.151.AN[10]) - CONTROL LEVER, LOCK (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PS03M00021F1

CONTROL

Box Assy, Incl 2 - 28

1шт.

2

PS03M01266F1

CONTROL

Box, Incl 3, 4, Serial Range: PX17-40001-PX17-40728

1шт.

2

PS03M01285F1

CONTROL

Box, Incl 3, 4, Start Serial: PX17-40729

1шт.

3

PS03M01267P1

CONTROL

Box

1шт.

4

2405R312D1620

BUSHING

3шт.

5

PS03M01270F1

LEVER

Assy, Incl 6, 7, Serial Range: PX17-40001-PX17-40652

1шт.

5

PS03M01281F1

LEVER

Assy, Incl 6, 7, Start Serial: PX17-40653

1шт.

6

PS03M01271P1

LEVER

, Serial Range: PX17-40001-PX17-40652

1шт.

6

PS03M01279P1

LEVER

, Start Serial: PX17-40653

1шт.

7

PS03M01072P1

GRIP

1шт.

8

PS03M01191P1

PIN

1шт.

9

LE03M01182F1

GAS STRUT

1шт.

10

PS03M01187P1

SPRING

1шт.

11

PA50S00001P1

LIMIT SWITCH

(Used for Lever Lock)

1шт.

12

YN02C01823P1

STOP

1шт.

13

PW03M01392F1

ROLLER ASSY.,15mm OD x 15mm L

Incl 14 ,15

1шт.

14

PW03M01391P1

ROLLER

1шт.

15

2405R312D1015

BUSHING

1шт.

16

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

Clip

1шт.

17

ZR16X01600

SNAP RING

1шт.

18

ZR36X00900

SNAP RING

1шт.

19

ZR36X00500

SNAP RING

2шт.

20

ZN17F10008

NUT

1шт.

21

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

1шт.

22

ZW16H08000

WASHER

1шт.

23

ZS28C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

1шт.

24

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

1шт.

25

YT02C01515D6

TRIM

1шт.

26

ZW26K08000

LOCK WASHER

2шт.

27

YT02C01515D4

SOFT TRIM

, Start Serial: PX17-40167

1шт.

27

PA22C01024D2

PANEL

, Start Serial: PX17-40631

1шт.

28

ZW16P10000

WASHER

1шт.
