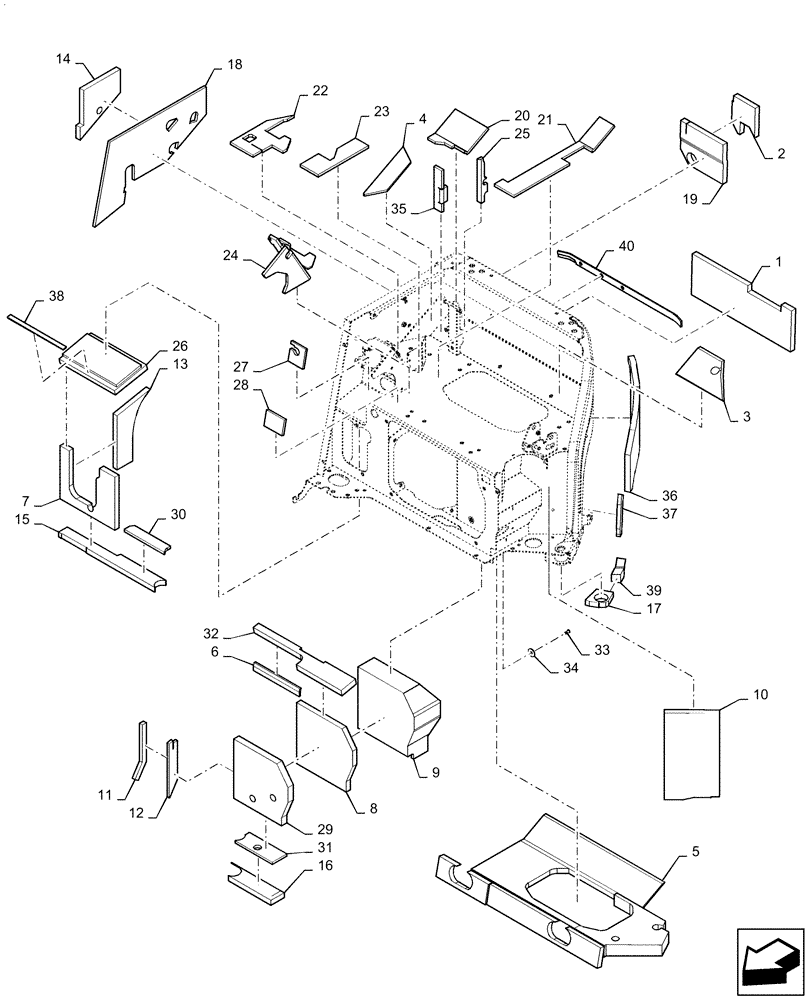

Запчасти Case CX36B (90.151.AN[03]) - STAND, ASSY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PX10M01171P1

INSULATION

1шт.

2

PX10M01279P1

INSULATION

1шт.

3

PX10M01280P1

INSULATION

1шт.

4

PX10M01209P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

4

PX10M01291P1

INSULATION

, Start Serial: PX17-40591

1шт.

5

PX10M01241P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

6

PX10M01271P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

6

PX10M01292P1

INSULATION

, Start Serial: PX17-40591

1шт.

7

PX10M01174P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

7

PX10M01293P1

INSULATION

, Start Serial: PX17-40591

1шт.

8

PX10M01211P1

INSULATION

1шт.

9

PX10M01219P1

INSULATION

1шт.

10

PX10M01281P1

INSULATION

1шт.

11

PX10M01175P1

INSULATION

1шт.

12

PX10M01221P1

INSULATION

1шт.

13

PX10M01208P1

INSULATION

1шт.

14

PX10M01188P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

15

PX10M01266P1

INSULATION

1шт.

16

PX10M01267P1

INSULATION

1шт.

17

PX10M01289P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

18

PX10M01260P1

INSULATION

1шт.

19

PX10M01200P1

INSULATION

1шт.

20

PX10M01283P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

21

PX10M01195P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

21

PX10M01297P1

INSULATION

, Start Serial: PX17-40591

1шт.

22

PX10M01284P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

22

PX10M01296P1

INSULATION

, Start Serial: PX17-40591

1шт.

23

PX10M01198P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

24

PX10M01203P1

INSULATION

1шт.

25

PX10M01251P1

INSULATION

1шт.

26

PX10M01282P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

26

PX10M01298P1

INSULATION

, Start Serial: PX17-40591

1шт.

27

PX10M01201P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

28

PX10M01246P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

29

PX10M01268P1

INSULATION

1шт.

30

PX10M01269P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

30

PX10M01294P1

INSULATION

, Serial Range: PX17-40591-PX17-40707

1шт.

30

PX10M01308P1

INSULATION

, Start Serial: PX17-40708

1шт.

31

PX10M01270P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

32

PX10M01248P1

INSULATION

1шт.

33

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

4шт.

34

YR21C01223P1

WASHER

4шт.

35

PX10M01252P1

INSULATION

1шт.

36

PX10M01255P1

INSULATION

1шт.

37

PX10M01256P1

INSULATION

1шт.

38

PX10M01286P1

RUBBER STRIP

, Serial Range: PX17-40001-PX17-40590

1шт.

39

PX10M01288P1

INSULATION

, Serial Range: PX17-40001-PX17-40590

1шт.

39

PX10M01295P1

INSULATION

, Start Serial: PX17-40591

1шт.

40

PX10M01302P1

INSULATION

, Start Serial: PX17-40176

1шт.
