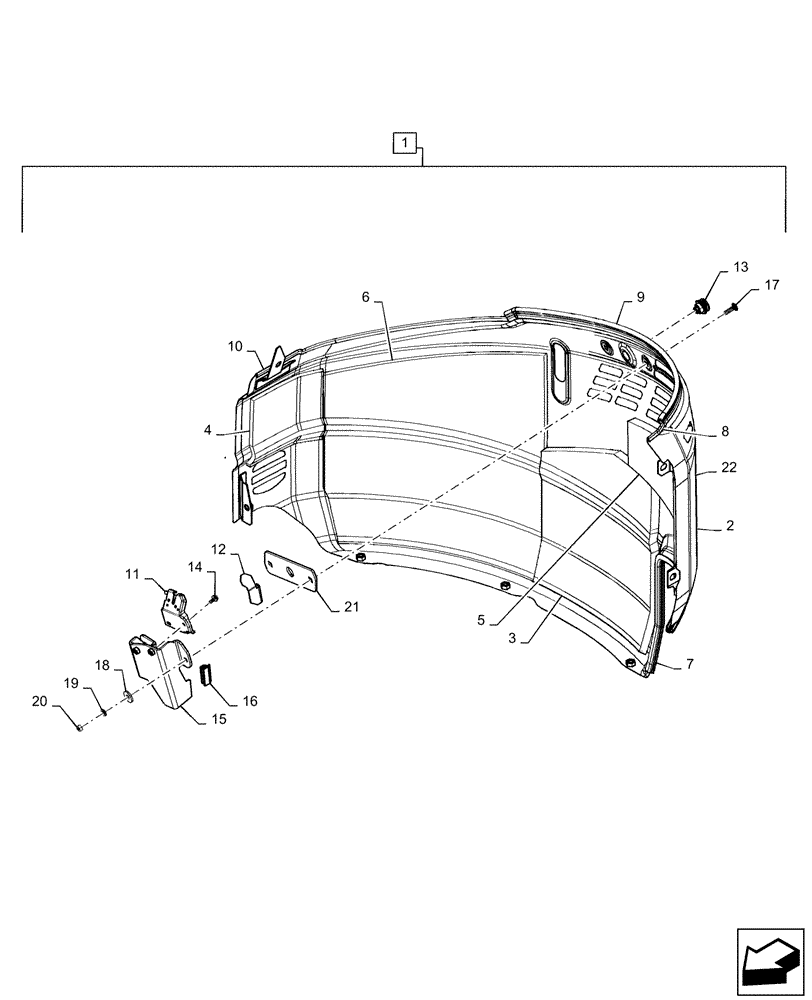

Запчасти Case CX36B (90.116.AX[15]) - GUARD INSTALL, RIGHT SIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PX21C01362F1

PANEL

Assy, Incl 2 - 22

1шт.

2

PX21C01392P2

PANEL

, Serial Range: PX17-40001-PX17-40413

1шт.

2

PX21C01467P1

PANEL

, Start Serial: PX17-40414

1шт.

3

PX21C01258P1

INSULATION

1шт.

4

PX21C01351P2

INSULATION

, Start Serial: PX17-40001

1шт.

5

PX21C01394P1

INSULATION

1шт.

6

PS21C01052P1

INSULATION

1шт.

7

PM21C01091D2

WEATHERSTRIP

1шт.

8

PF22C01013D9

TRIM

1шт.

9

2427P1836D43

WEATHERSTRIP

1шт.

10

PE21C01135DN

TRIM

1шт.

11

YT21C01034P2

CATCH

1шт.

12

PS21C01344P1

PLATE

1шт.

13

YR22C01025P2

LOCK

1шт.

14

ZM73C06016

BOLT,M6x16mm - Course Thread

Sems

2шт.

15

PX21C01442P1

PLATE

1шт.

16

LS21C01093DW

TRIM

1шт.

17

PW21C01413P1

CAPSCREW

2шт.

18

HY25X10027G1

WASHER,10mm ID x 27mm OD x 3.2mm Thk

2шт.

19

ZW26X08000

LOCK WASHER

2шт.

20

ZN18C08007

NUT

2шт.

21

PX21C01186P1

PLATE

1шт.

22

PX21C01414P1

INSULATION

1шт.
