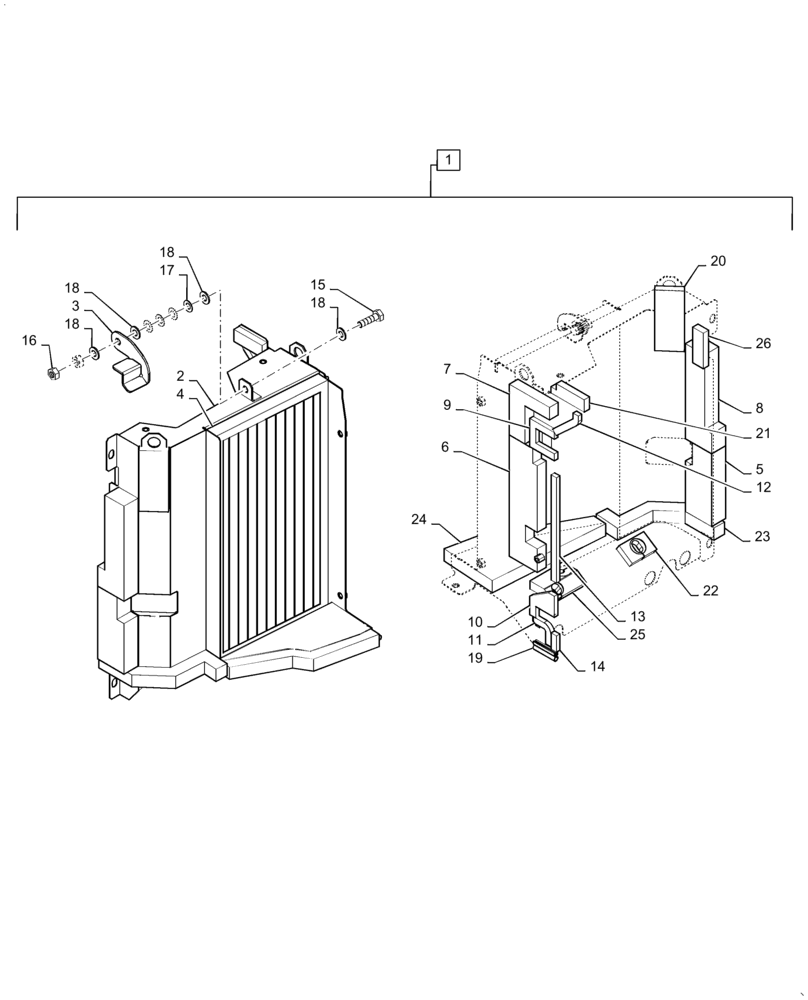

Запчасти Case CX36B (90.116.AX[10]) - GUARD INSTALL, RADIATOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PX22C01148F1

GUARD

Assy, Incl 2 - 26

1шт.

2

PX22C01146P2

DUCT

, Serial Range: PX17-40001-PX17-40433

1шт.

2

PX22C01146P3

DUCT

, Start Serial: PX17-40434

1шт.

3

PX22C01092P1

PLATE

, Serial Range: PX17-40001-PX17-40350

1шт.

3

PX22C01092P2

PLATE

, Start Serial: PX17-40351

1шт.

4

PX50V01003P1

SCREEN

1шт.

5

PX22C01141P1

RUBBER STRIP

, Serial Range: PX17-40001-PX17-40350

1шт.

5

PX22C01188P1

INSULATION

, Start Serial: PX17-40351

1шт.

6

PX22C01172P1

INSULATION

1шт.

7

PX22C01173P1

INSULATION

1шт.

8

PX22C01142P1

RUBBER STRIP

, Serial Range: PX17-40001-PX17-40350

1шт.

9

PX22C01060P1

RUBBER STRIP

1шт.

10

PX22C01174P1

RUBBER STRIP

1шт.

11

PX22C01160P1

RUBBER STRIP

1шт.

12

PX22C01066P1

RUBBER STRIP

1шт.

13

PX22C01067P1

RUBBER STRIP

1шт.

14

PX22C01068P1

RUBBER STRIP

1шт.

15

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

1шт.

16

ZN18C10008

NUT

2шт.

17

R16T0137D3

WASHER

4шт.

18

ZW16P10000

WASHER

4шт.

19

YA21C01080D1

WEATHERSTRIP

1шт.

20

PX22C01105P1

RUBBER STRIP

1шт.

21

PX22C01133P1

RUBBER STRIP

1шт.

22

PX22C01161P1

RUBBER STRIP

1шт.

23

PX22C01151P1

RUBBER STRIP

1шт.

24

PX22C01152P1

RUBBER STRIP

1шт.

25

PX22C01162P1

RUBBER STRIP

1шт.

26

PX22C01154P1

RUBBER STRIP

1шт.
