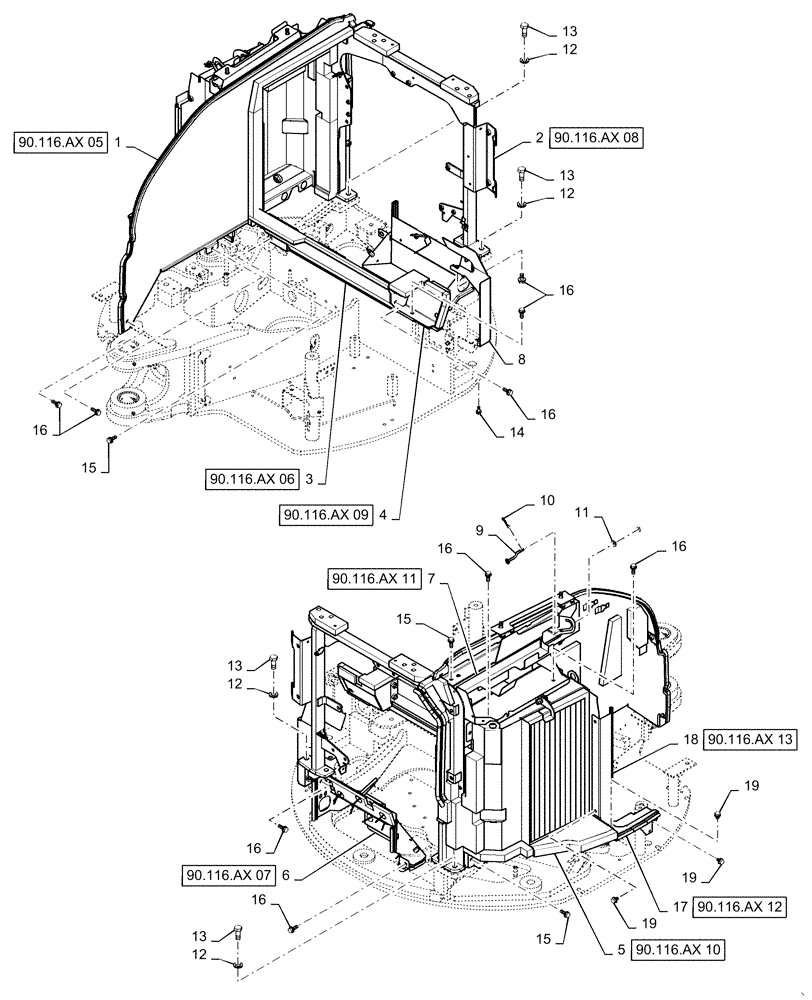

Запчасти Case CX36B (90.116.AX[04]) - GUARD, MOUNTING (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PX21C01365F1

GUARD

Assy

1шт.

2

PX21C01115F1

SUPPORT

Assy

1шт.

3

PX21C01021F1

COVER ASSY

1шт.

4

PX21C01324F1

GUARD

Assy

1шт.

5

PX22C01148F1

GUARD

Assy

1шт.

6

PX22C01003F1

GUARD

Assy

1шт.

7

PX21C01090F1

GUARD

Assy

1шт.

8

PX21C01312P1

BRACKET

, Serial Range: PX17-40001-PX17-40007

1шт.

8

PX21C01453P1

BRACKET

, Serial Range: PX17-40008-PX17-40401

1шт.

8

PX21C01453P2

BRACKET

, Start Serial: PX17-40402

1шт.

9

PX21C01419P1

STAY

1шт.

10

2419R9D2

COTTER PIN

1шт.

11

ZW16P08000

WASHER

1шт.

12

ZW16H16000

WASHER

4шт.

13

ZS18C16040

SCREW,Hex, M16 x 40mm

Cap

4шт.

14

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

1шт.

15

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

6шт.

16

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

13шт.

17

PX21C01250F1

GUARD

Assy

1шт.

18

PX21C01253F1

GUARD

Assy

1шт.

19

ZM73C10016

BOLT,M10x16mm - Course Thread

Sems

4шт.
