Запчасти Case CX36B (90.110.AP[02]) - PLATE, GROUP, FLOOR, CANOPY - HCP (90) - PLATFORM, CAB, BODYWORK AND DECALS

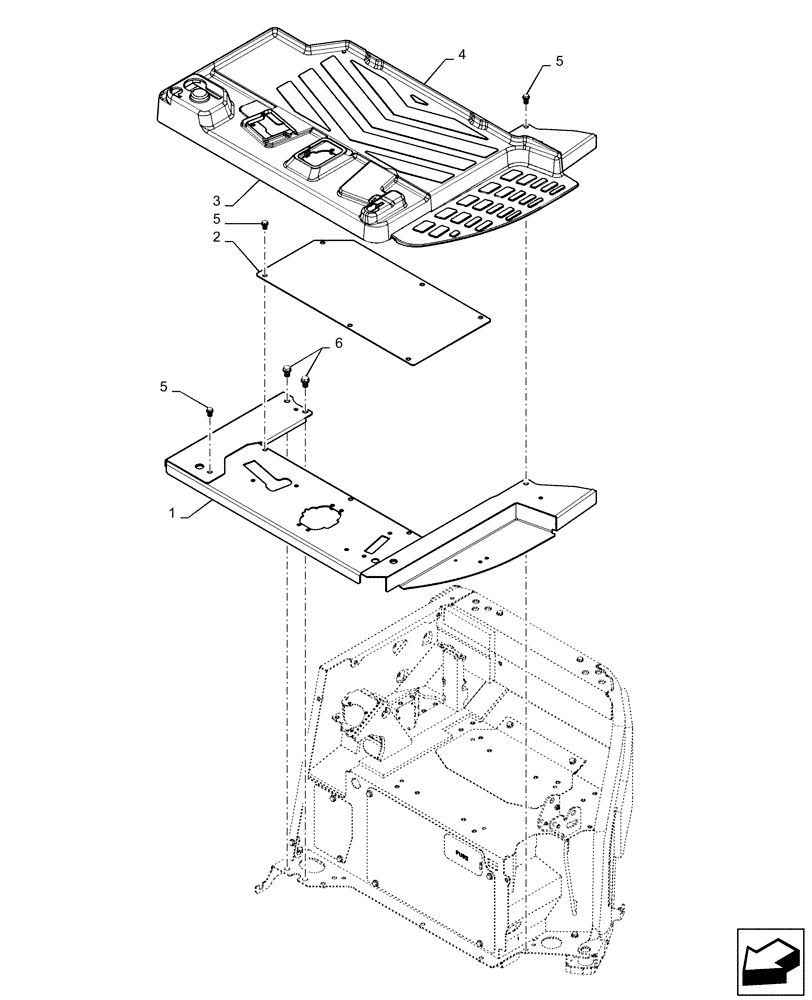

Схема запчастей Case CX36B - (90.110.AP[02]) - PLATE, GROUP, FLOOR, CANOPY - HCP (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
1
3
4
5
5
2
6

Артикул

Название

Примечание

Количество

1

PX03M01216P2

PLATE

Floor, Serial Range: PX17-40001-PX17-40675

1шт.

1

PX03M01216P3

PLATE

Floor, Start Serial: PX17-40676

1шт.

2

PX03M01138P1

COVER

1шт.

3

PX26M00011P1

FLOOR MAT

1шт.

4

PX26M00006P1

FLOOR MAT

1шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems, Serial Range: PX17-40001-PX17-40012

8шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems, Serial Range: PX17-40013-PX17-40019

6шт.

5

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems, Start Serial: PX17-40020

7шт.

5

ZM73C08030

BOLT,M8x30mm - Course Thread

Sems, Serial Range: PX17-40013-PX17-40019

2шт.

5

ZM73C08030

BOLT,M8x30mm - Course Thread

Sems, Start Serial: PX17-40020

1шт.

6

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

2шт.

Выбрано товаров: 11
