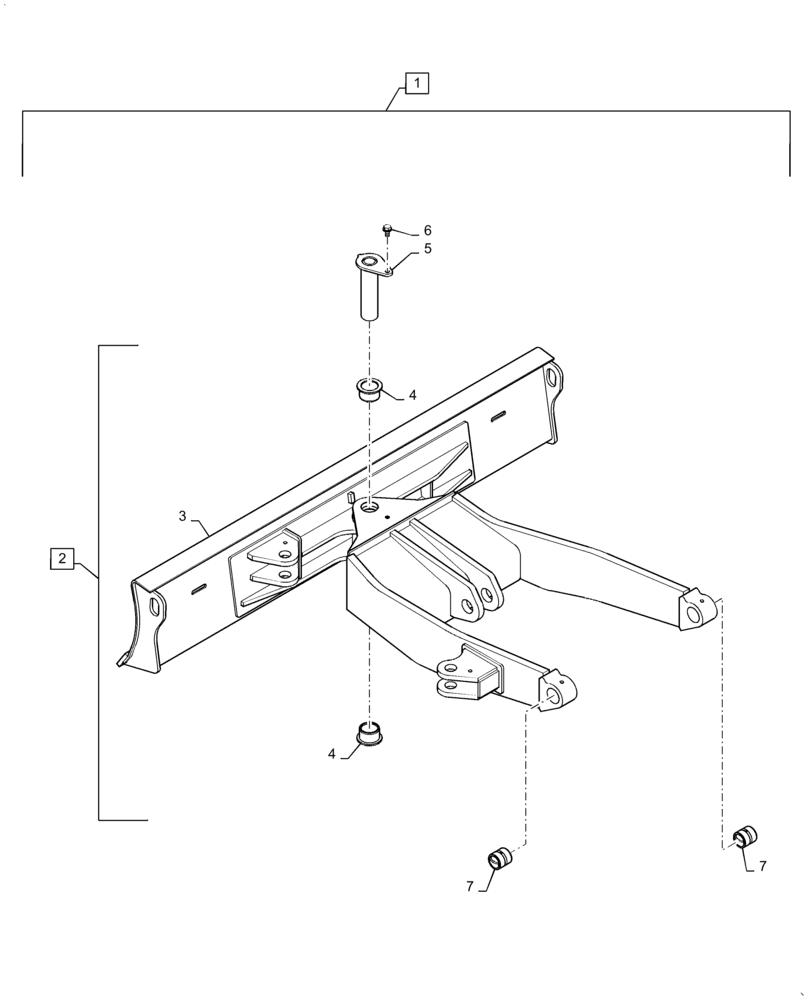

Запчасти Case CX36B (86.110.AD[02]) - DOZER BLADE, ANGLE, ASSY (86) - DOZER

1

PX51B00106F1

DOZER

Assy, Incl 2 - 7

1шт.

2

PX51B00107F1

DOZER,65mm W x 1550mm L x 12mm Thk

Assy, Incl 3 - 4

1шт.

3

PX51B01109P1

CUTTING EDGE,65mm W x 1700mm L x 12mm Thk

1шт.

4

PW51B01106P1

BUSHING

2шт.

5

PX51B01138P1

PIN

1шт.

6

ZM73C12025

BOLT,M12x25mm - Course Thread

Sems

1шт.

7

PW51B01039P1

BUSHING,40mm ID x 50mm OD x 50mm L

2шт.
