(55.511.AA[02]) - LIGHT, INSTALL, BOOM

Запчасти Case CX36B (55.511.AA[02]) - LIGHT, INSTALL, BOOM (55) - ELECTRICAL SYSTEMS

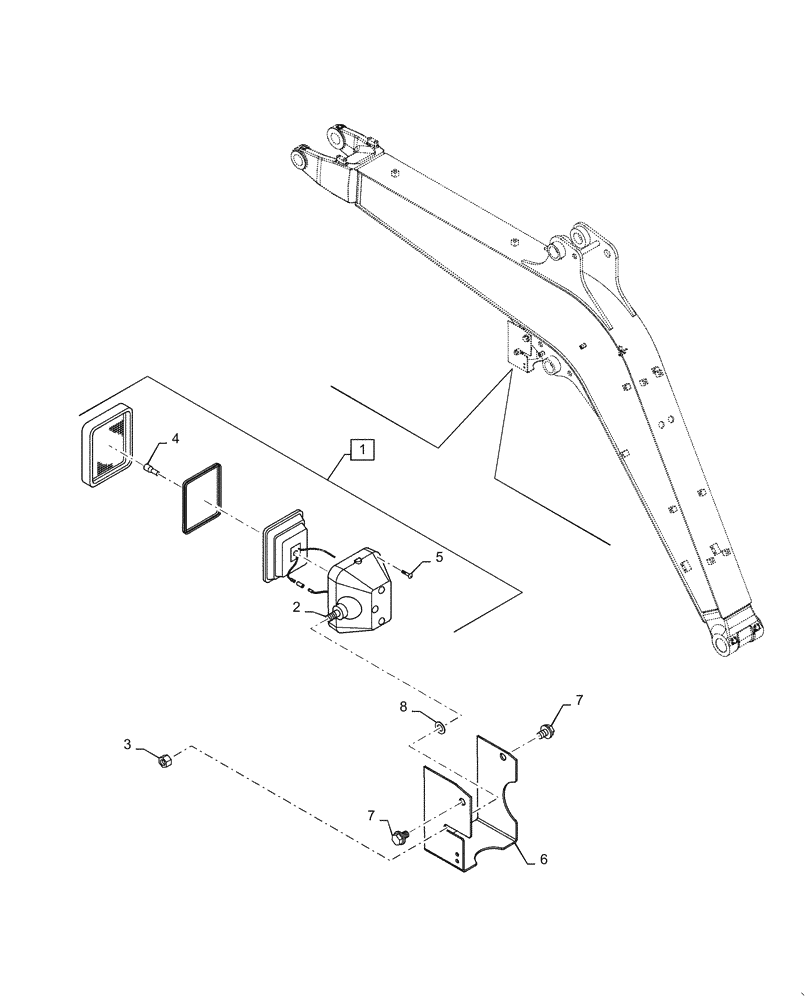

Схема запчастей Case CX36B - (55.511.AA[02]) - LIGHT, INSTALL, BOOM (55) - ELECTRICAL SYSTEMS
7
5
1
2
8
6
3
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PM80S00008F1

LIGHT

Incl 2 - 5

1шт.

2

PM80S00007S006

COLLAR

1шт.

3

PM80S00005S007

NUT

1шт.

4

PM80S00005S010

BULB,12V, 55W

1шт.

5

YN80S00010S009

SCREW

Machine

4шт.

6

PX80E01011P1

COVER

1шт.

7

ZM73C12020

BOLT,M12x20mm - Course Thread

Sems

2шт.

8

PX80E01002P1

WASHER

1шт.
