(55.408.CA[01]) - MONITOR, CAB - ASN PX17-40002

Запчасти Case CX36B (55.408.CA[01]) - MONITOR, CAB - ASN PX17-40002 (55) - ELECTRICAL SYSTEMS

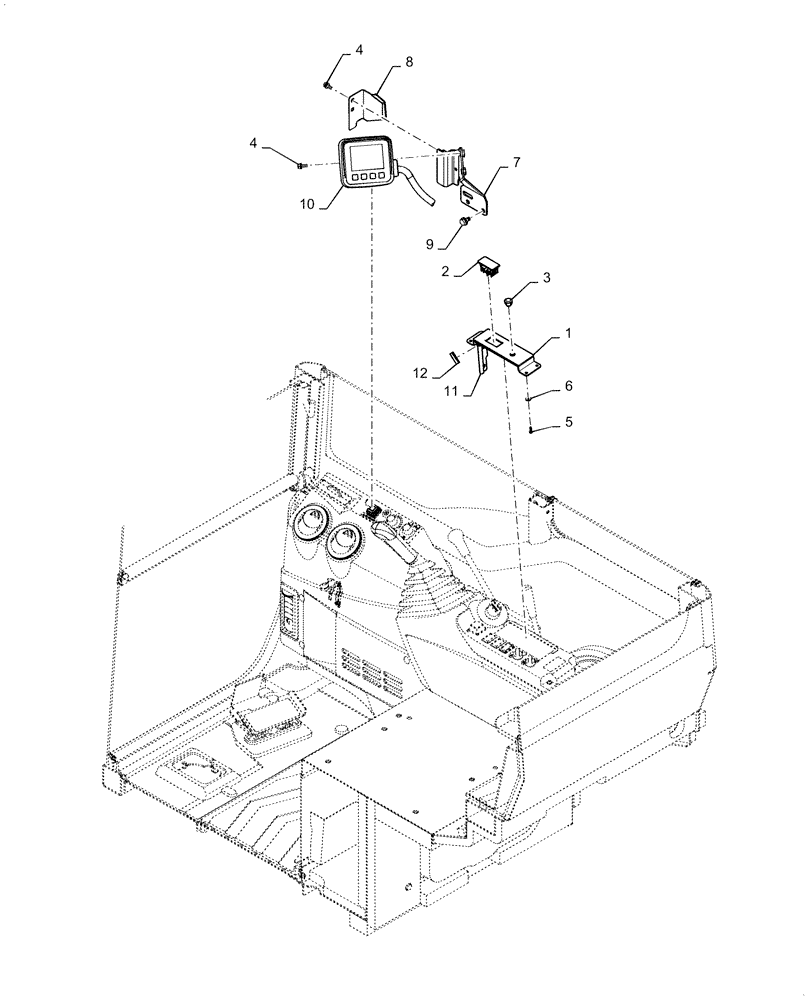

Схема запчастей Case CX36B - (55.408.CA[01]) - MONITOR, CAB - ASN PX17-40002 (55) - ELECTRICAL SYSTEMS
12
5
7
4
10
9
11
4
2
8
3
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PS55E01003P1

COVER

, Serial Range: PX17-40002-PX17-40642

1шт.

1

YJ55E01031P1

COVER

, Start Serial: PX17-40643

1шт.

2

PS50S00002F1

ROCKER SWITCH

(Used for DPF Manual Regeneration)

1шт.

2

PS17M01001P1

CAP

1шт.

3

PW17M01021P1

CAP

1шт.

4

ZM61C06016

BOLT

Sems

4шт.

5

ZS32T40016

SCREW

Cross Tapping

4шт.

6

ZW16K04000

WASHER

4шт.

7

PS55E01023P2

BRACKET

1шт.

8

PS55E01026P1

COVER

1шт.

9

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

2шт.

10

PS59S00001F1

GAUGE

Cluster (Liquid Crystal Display), Serial Range: PX17-40002--PX17-40108

1шт.

10

PS59S00001F2

GAUGE

Cluster (Liquid Crystal Display), Serial Range: PX17-40109-PX17-40175

1шт.

10

PS59S00001F3

GAUGE

Cluster (Liquid Crystal Display), Serial Range: PX17-40176-PX17-40540

1шт.

10

PS59S00001F4

GAUGE

Cluster (Liquid Crystal Display), Serial Range: PX17-40541-PX17-40859

1шт.

10

PS59S00001F5

GAUGE

Cluster (Liquid Crystal Display), Start Serial: PX17-40860

1шт.

11

PA22C01024D2

PANEL

, Start Serial: PX17-40643

1шт.

12

PF22C01013D8

TRIM

, Start Serial: PX17-40643

1шт.
