(55.201.AH) - KEY, ASSY

Запчасти Case CX36B (55.201.AH) - KEY, ASSY (55) - ELECTRICAL SYSTEMS

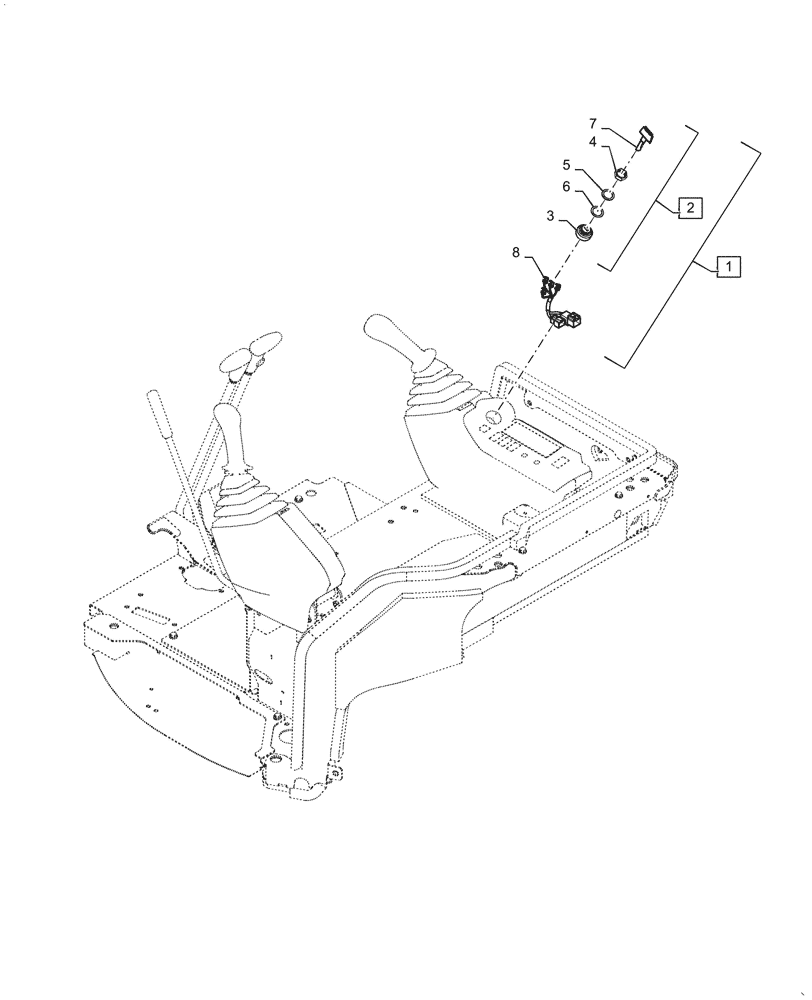

Схема запчастей Case CX36B - (55.201.AH) - KEY, ASSY (55) - ELECTRICAL SYSTEMS
6
3
7
5
4
2
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PW50E00003F1

IGNITION SWITCH

Assy, Incl 2 - 8, Serial Range: PX17-40001-PX17-40297

1шт.

1

PW50E00003F2

IGNITION SWITCH

Assy, Incl 2 - 9, Start Serial: PX17-40298

1шт.

2

PW50S00007F1

IGNITION SWITCH

Key, Incl 3 - 7

1шт.

3

PW50S00005S001

SWITCH

Ignition

1шт.

4

PW50S00004S004

NUT

Assy

1шт.

5

YN50S00002S005

WASHER

1шт.

6

YN50S00002S003

WASHER

2шт.

7

PM50S01001P1

SET OF 2 KEYS

1шт.

8

PW50E01002P1

HARNESS

Ignition

1шт.

9

NSS

NOT SOLD SEPARAT

Tube, Incl in 1

1шт.
