Запчасти Case CX36B (50.200.BY[03]) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL

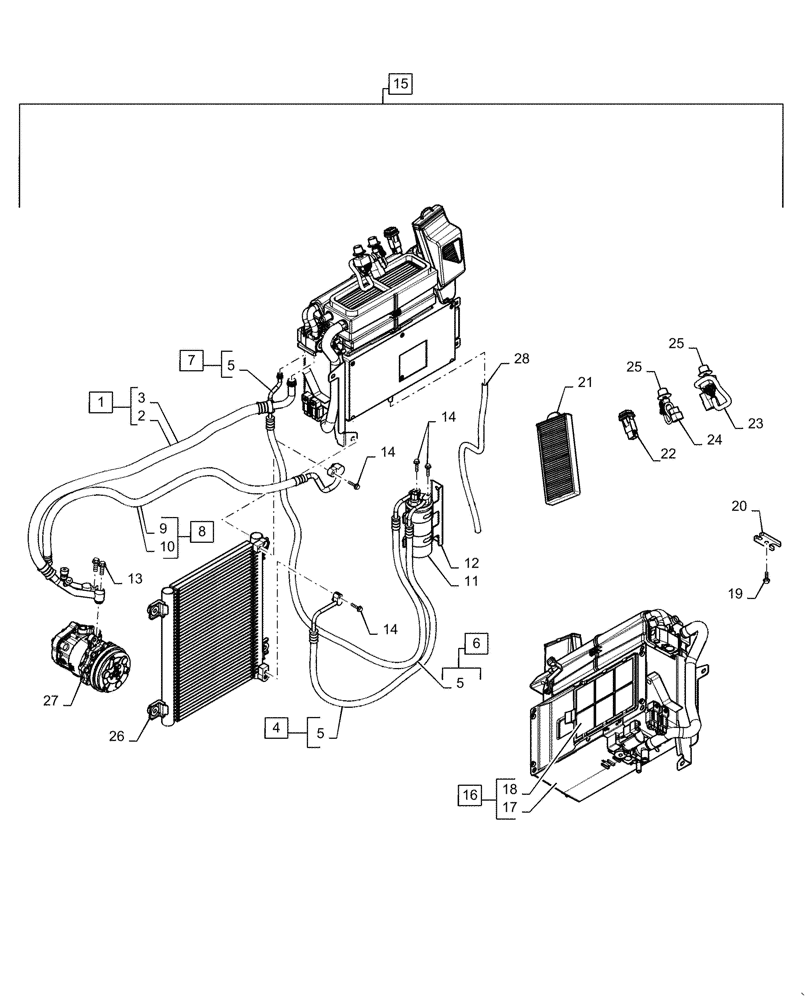

Схема запчастей Case CX36B - (50.200.BY[03]) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL
5
5
18
25
6
16
2
9
5
20
25
12
15
26
11
24
19
7
27
28
10
17
21
14
3
22
1
14
14
23
13
4
8

Артикул

Название

Примечание

Количество

1

PX20M01075F1

A/C HOSE

Assy, A/C to Compressor, Incl 2, 3

1шт.

2

2445Z1604D5

O-RING

2шт.

3

YN20M01725P1

CAP

1шт.

4

PX20M01076F1

A/C HOSE

Assy, Receiver-Dryer to Condensor, Incl 5

1шт.

5

2445Z1604D6

O-RING

5шт.

6

PX20M01081F1

A/C HOSE

Assy, A/C to Receiver- Dryer, Incl 5

1шт.

7

PX20M01035F1

TUBE

Assy, Incl 5

1шт.

8

PX20M01077F1

A/C HOSE

Assy, Compressor to Condensor, Incl 9, 10

1шт.

9

2445Z1604D4

O-RING

2шт.

10

YN20M01726P1

CAP

1шт.

11

PY20M01300F1

RECEIVER-DRYER,Air Conditioning

1шт.

12

YT20M01187P1

BRACKET

1шт.

13

YT96V00001S009

SCREW

Cap

2шт.

14

YT96V00001S010

CAP

Screw

4шт.

15

PS20M00004F1

AIR CONDITIONER

Assy, Incl 16 - 25

1шт.

16

PS20M00006F1

AIR CONDITIONER

Assy, Incl 17, 18

1шт.

17

PS20M00005F1

AIR CONDITIONER

1шт.

18

PS50V01006P1

CAB FILTER

1шт.

18

PS20M00005S014

FILTER

1шт.

19

YT20M00009S005

BOLT

Machine Screw

1шт.

20

LQ20M01169P1

PLATE

1шт.

21

PS50V01005P1

CAB FILTER

1шт.

22

PS50S00005P1

ROCKER SWITCH

(Used for A/C)

1шт.

23

PS20M01076P1

WIRE HARNESS

A/C

1шт.

24

PS20M01077P1

ROTARY SWITCH

A/C

1шт.

25

PS20M01078P1

KNOB

2шт.

26

PS20M01075F1

CONDENSER

1шт.

27

PS91V00002F1

AIRCOND. COMPRESSOR

Assy

1шт.

28

PX20M01041P1

HOSE

Drain

1шт.

Выбрано товаров: 29
