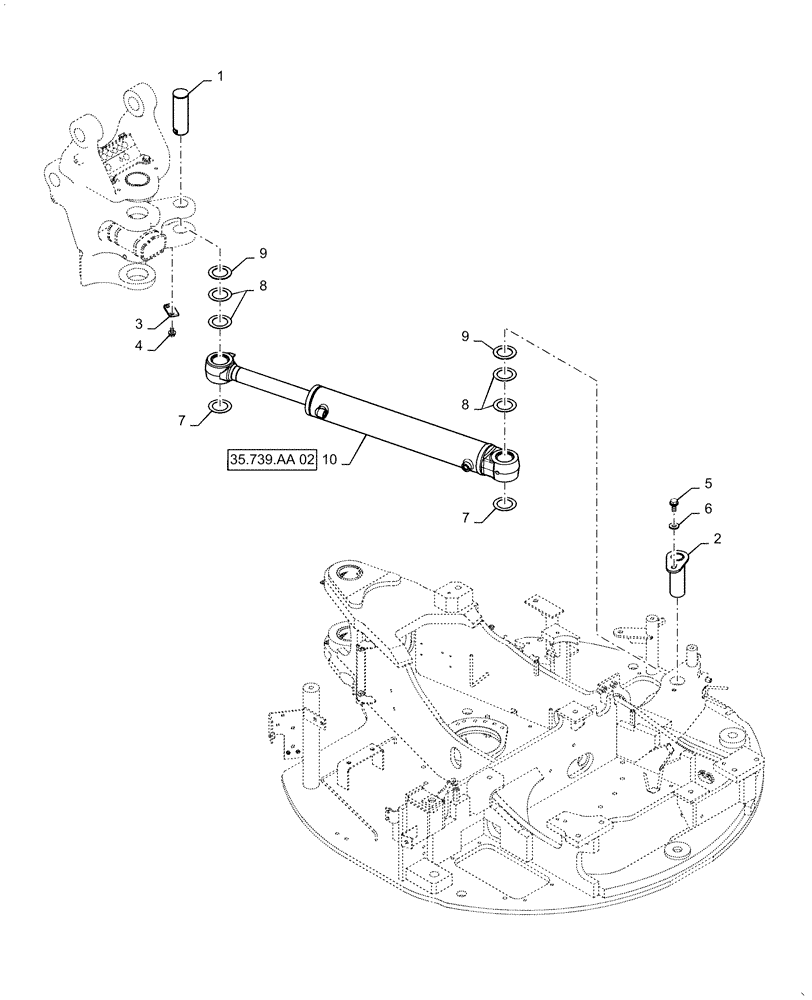

Запчасти Case CX36B (35.739.AA[01]) - CYLINDER, INSTALL, SWING (35) - HYDRAULIC SYSTEMS

1

PX02B01421P1

PIN

1шт.

2

PX02B01403P1

PIN

1шт.

3

PM02B01220P1

PLATE

, Serial Range: PX17-40001-PX17-40693

1шт.

3

PX02B01455P1

PLATE

, Start Serial: PX17-40694

1шт.

4

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.

5

ZM73C12030

BOLT,M12x30mm - Course Thread

Sems

1шт.

6

2418T12345

WASHER

1шт.

7

PR02B01108P1

SHIM,0.5mm Thk

2шт.

8

PR02B01121D1

SHIM,47mm ID x 70mm OD x 0.9mm Thk

4шт.

9

PX02B01415P1

SHIM,2mm Thk

2шт.

10

PX01V00072F1

HYDRAULIC CYLINDER

Swing

1шт.
