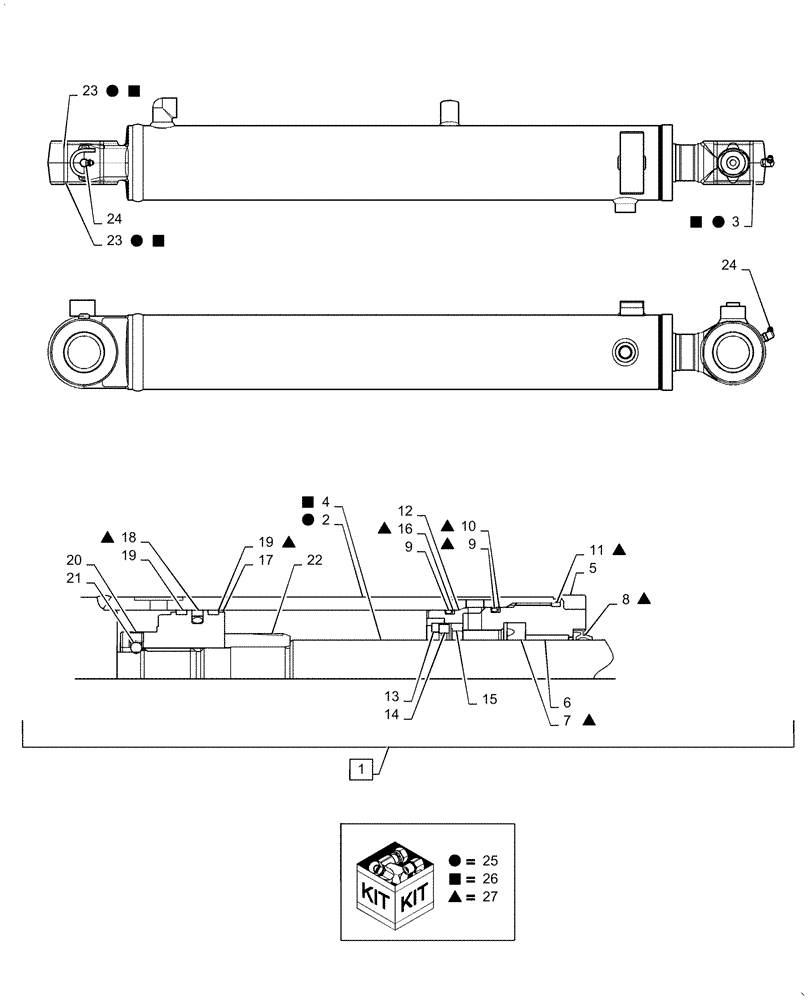

Запчасти Case CX36B (35.736.AA[02]) - CYLINDER, BOOM, ASSY (35) - HYDRAULIC SYSTEMS

1

PX01V00069F1

HYDRAULIC CYLINDER

Boom, Incl 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

Tube Assy, Incl in 1, 25

1шт.

3

PX01V00043S002

BUSHING

2шт.

4

NSS

NOT SOLD SEPARAT

Rod, Piston, Incl in 1, 26

1шт.

5

PR01V00033S004

CYLINDER HEAD

1шт.

6

PX01V00043S019

BUSHING

1шт.

7

2438U345S15

RING

U

1шт.

8

PH01V00011S006

GASKET

Ring, Wiper

1шт.

9

ZD12G08000

O-RING,79.40mm ID x 85.60mm OD x 3.10mm

2шт.

10

PX01V00030S008

BACK-UP RING

1шт.

11

ZD12G08500

O-RING,84.40mm ID x 90.60mm OD x 3.10mm

1шт.

12

PX01V00069S011

HOLDER

1шт.

13

PH01V00014S029

SPACER

1шт.

14

PH01V00014S011

SEAL

1шт.

15

PX01V00069S014

COLLAR

1шт.

16

ZD75G08000

BACK-UP RING

1шт.

17

PR01V00033S011

PISTON

1шт.

18

YR01V00003S014

SEAL

1шт.

19

PR01V00033S013

RING

2шт.

20

2438U1057S16

SET SCREW

1шт.

21

2436U946S11

BALL

1шт.

22

PX01V00069S021

RING

1шт.

23

PR01V00002S027

SEAL

Dust

4шт.

24

PR01V00027S023

LUBE NIPPLE

Nipple, Grease

2шт.

25

PX01V00069R100

REPAIR KIT

Incl 2 (Qty 1), 3 (Qty 1), 23 (Qty 2)

1шт.

26

PX01V00069R200

REPAIR KIT

Incl 3 (Qty 1), 4 (Qty 1), 23 (Qty 2)

1шт.

27

PX01V00069R300

REPAIR KIT

Incl 7 - 11 (Qty 1), 16 (Qty 1), 18 (Qty 1), 9 (Qty 2), 19 (Qty 2)

1шт.
