(35.359.AE[23]) - CONTROL, LINES, VALVE, NIBBLER & BREAKER, ANGLE, DOZER

Запчасти Case CX36B (35.359.AE[23]) - CONTROL, LINES, VALVE, NIBBLER & BREAKER, ANGLE, DOZER (35) - HYDRAULIC SYSTEMS

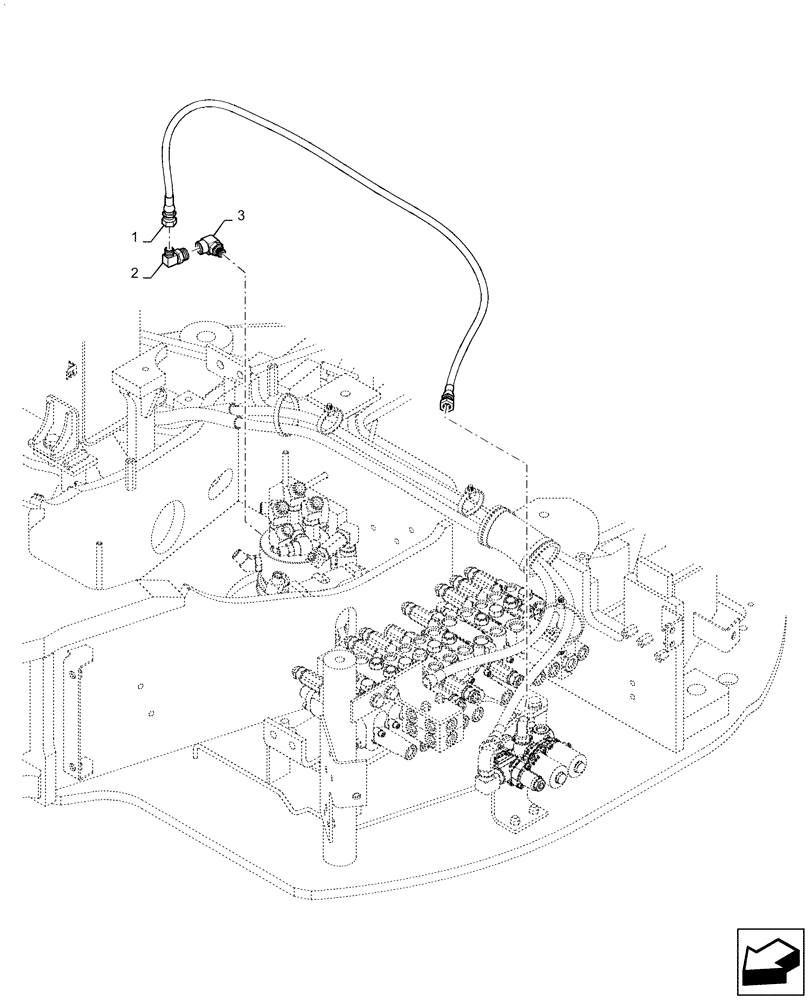

Схема запчастей Case CX36B - (35.359.AE[23]) - CONTROL, LINES, VALVE, NIBBLER & BREAKER, ANGLE, DOZER (35) - HYDRAULIC SYSTEMS
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

HX23L03110DX

HOSE

S/J P - S/V A (W/Accumulator), S/J P - S/V B (W/O Accumulator)

1шт.

2

HH35S04004G1

90 ELBOW

1шт.

3

2444Z2894

90 ELBOW

1шт.

Выбрано товаров: 3
