Запчасти Case CX36B (35.359.AE[20]) - CONTROL, LINES, VALVE - NIBBLER & BREAKER HAND , CONTROL, PROPORTIONAL (35) - HYDRAULIC SYSTEMS

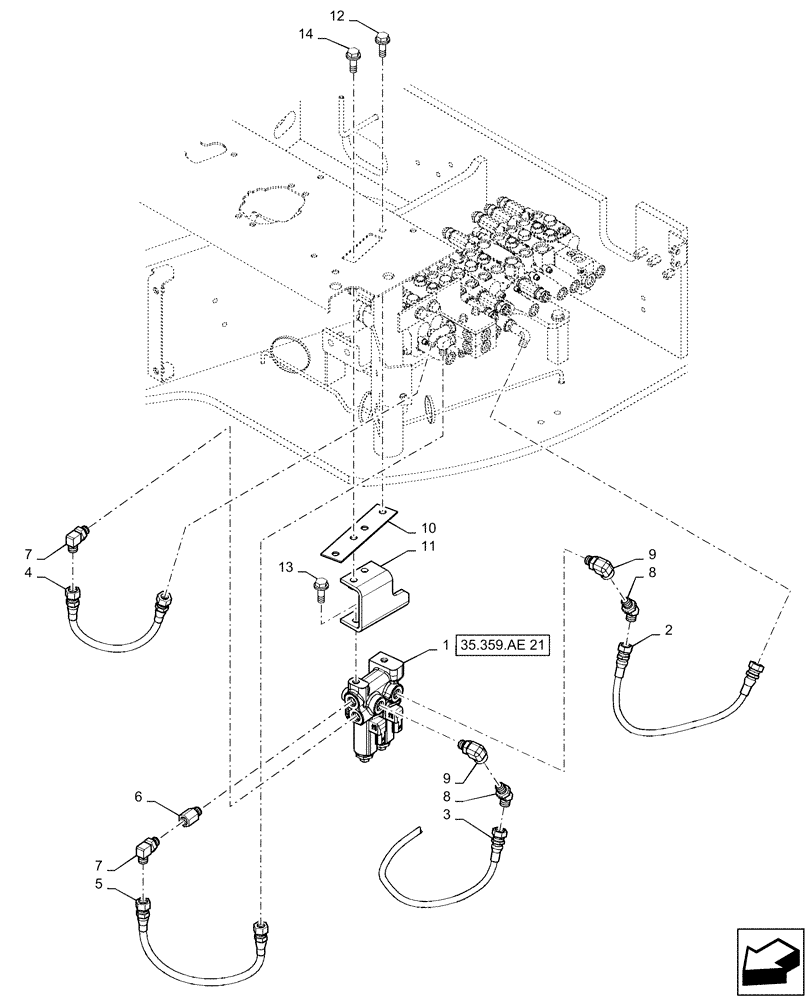

Схема запчастей Case CX36B - (35.359.AE[20]) - CONTROL, LINES, VALVE - NIBBLER & BREAKER HAND , CONTROL, PROPORTIONAL (35) - HYDRAULIC SYSTEMS
10
2
35.359.ae 21
3
12
1
4
9
7
6
11
8
14
13
8
9
5
7

Артикул

Название

Примечание

Количество

1

PW35V00002F1

SOLENOID VALVE

Assy (Used Nibbler Open/Close Proportional, Revolution Left/Right Proportional, Extra Proportional Left/Right)

1шт.

2

HX23L03040DX

HOSE

1шт.

3

HX23L03064DX

HOSE ASSY.

1шт.

4

HX24L04030DX

HOSE

1шт.

5

HX24L04038DX

HOSE

1шт.

6

HH25R04004G5

HYD CONNECTOR

1шт.

7

HH35S04004G1

90 ELBOW

2шт.

8

HH45S04004G1

45 ELBOW

2шт.

9

2444Z2894

90 ELBOW

2шт.

10

PW64H01089P1

SUPPORT

1шт.

11

PX64H01030P1

BRACKET

1шт.

12

ZM22C08020

BOLT

Sems

2шт.

13

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

2шт.

14

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

Выбрано товаров: 14
