(35.359.AE[10]) - CONTROL, LINES, VALVE, W/ AND W/OUT ACCUMULATOR, NIBBLER & BREAKER

Запчасти Case CX36B (35.359.AE[10]) - CONTROL, LINES, VALVE, W/ AND W/OUT ACCUMULATOR, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

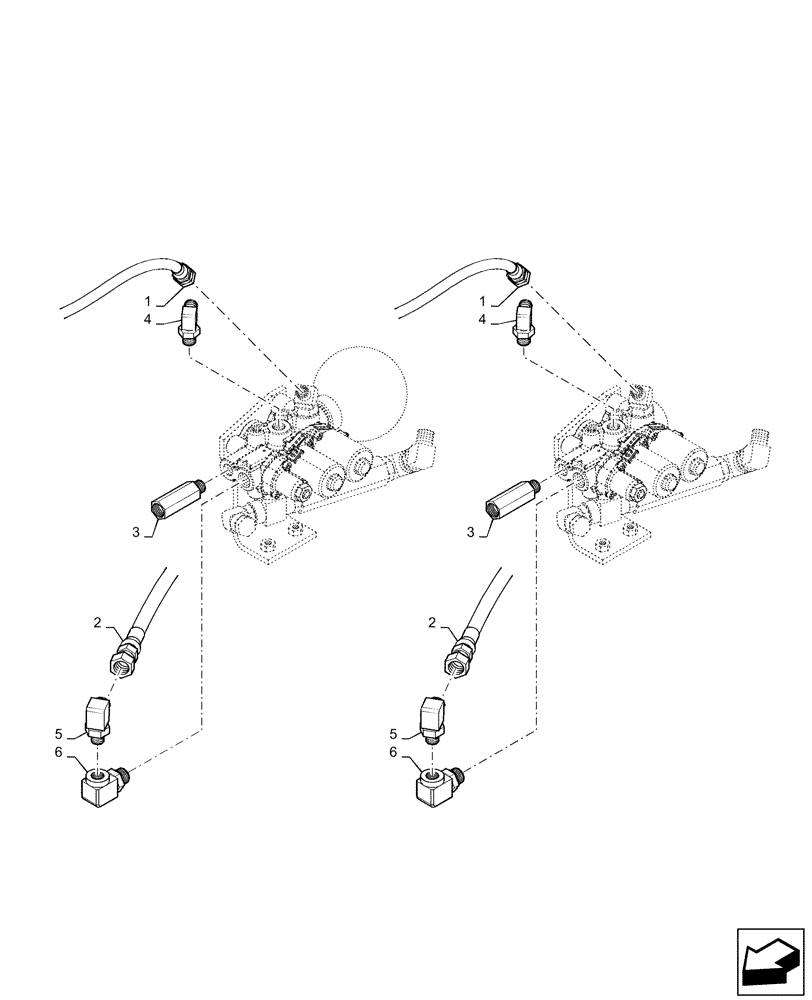

Схема запчастей Case CX36B - (35.359.AE[10]) - CONTROL, LINES, VALVE, W/ AND W/OUT ACCUMULATOR, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS
3
1
5
2
6
3
5
1
4
6
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

HX34L04028DX

HOSE

S/V B (W/Accumulator) - Block P, S/V A (W/O Accumulator) - Block P

1шт.

2

HX24L06180DX

HOSE

S/V T - Tank

1шт.

3

2444Z4101

HYD CONNECTOR

1шт.

4

HH35S04004G1

90 ELBOW

1шт.

5

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

6

YT42H01128P1

90 ELBOW

1шт.
