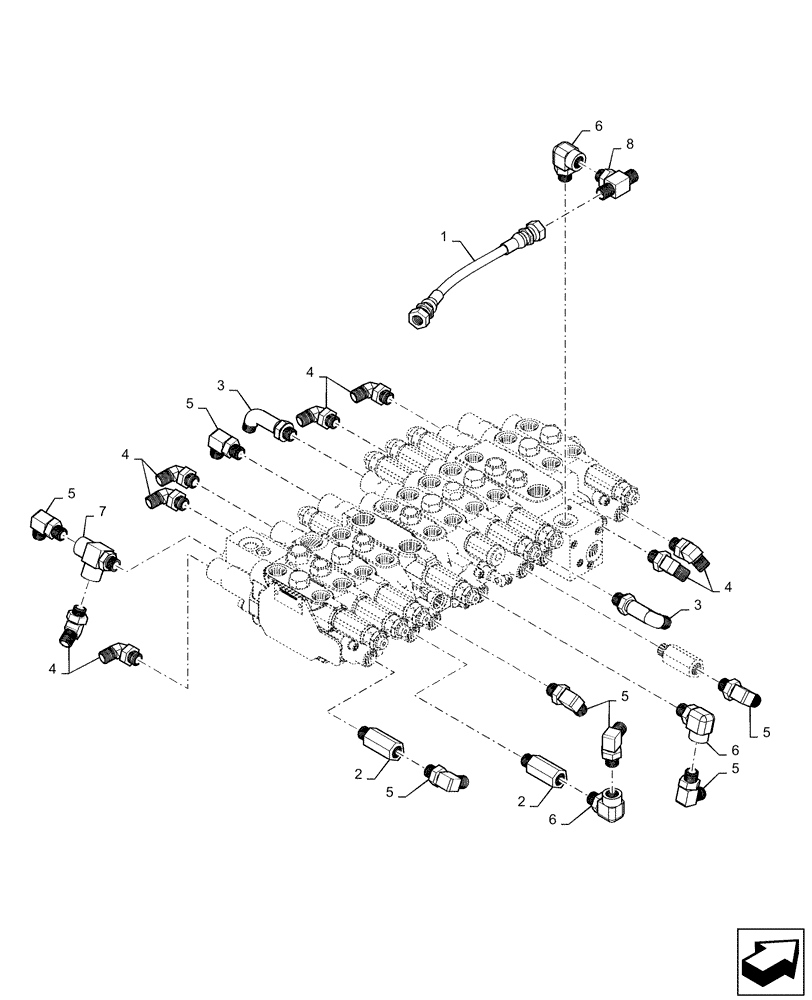

Запчасти Case CX36B (35.359.AE[02]) - CONTROL, LINES, MAIN, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

1

HX23L03020DX

HOSE ASSY.

C/V Pb8 - C/V PB8"

1шт.

2

2444T2524

HYD CONNECTOR

3шт.

3

PW03H01138P1

90 ELBOW

2шт.

4

HH45S04004G1

45 ELBOW

8шт.

5

HH35S04004G1

90 ELBOW

7шт.

6

2444Z2894

90 ELBOW

3шт.

7

HH55Q04004G1

TEE,1/4" ORB x 1/4" JIC x 1/4" JIC

1шт.

8

HH55L04004G2

TEE

1шт.
