(35.357.AO[02]) - PILOT VALVE, PROPEL, TRAVEL ALARM

Запчасти Case CX36B (35.357.AO[02]) - PILOT VALVE, PROPEL, TRAVEL ALARM (35) - HYDRAULIC SYSTEMS

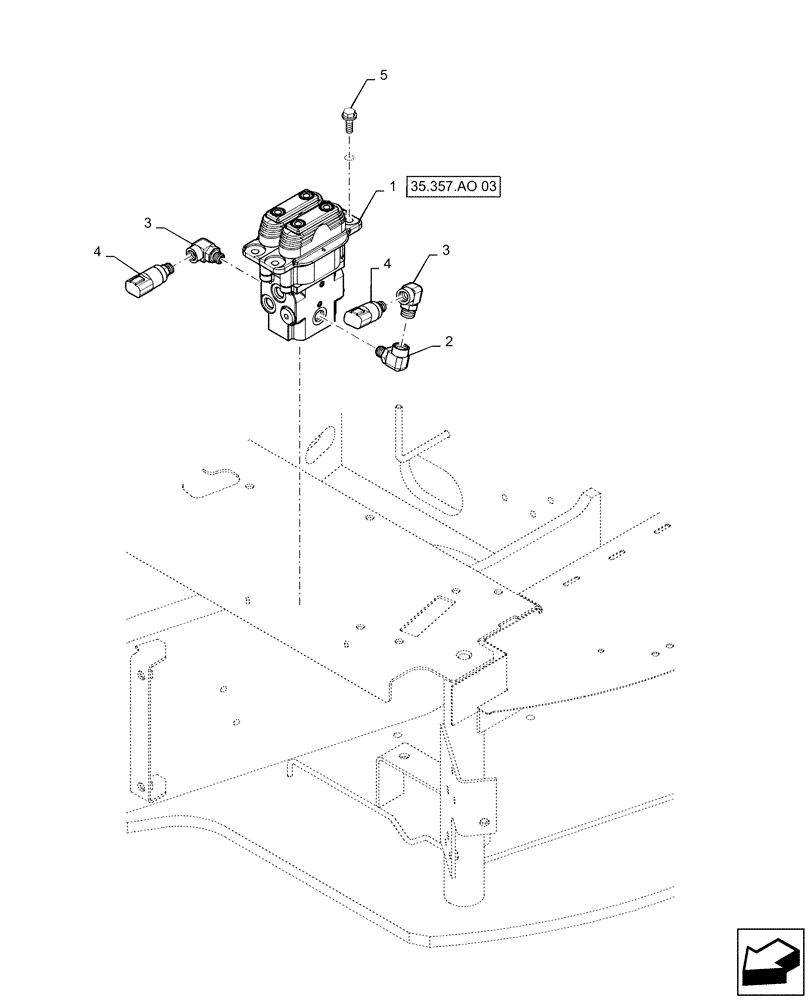

Схема запчастей Case CX36B - (35.357.AO[02]) - PILOT VALVE, PROPEL, TRAVEL ALARM (35) - HYDRAULIC SYSTEMS
3
5
35.357.ao 03
1
4
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PS30V00006F1

PILOT VALVE

Travel Alarm

1шт.

2

2444Z2894

90 ELBOW

1шт.

3

PS62H01001P1

90 ELBOW

2шт.

4

PS50S00001F1

PRESSURE SWITCH

(Used for Hyd Low Pressure)

2шт.

5

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

4шт.
