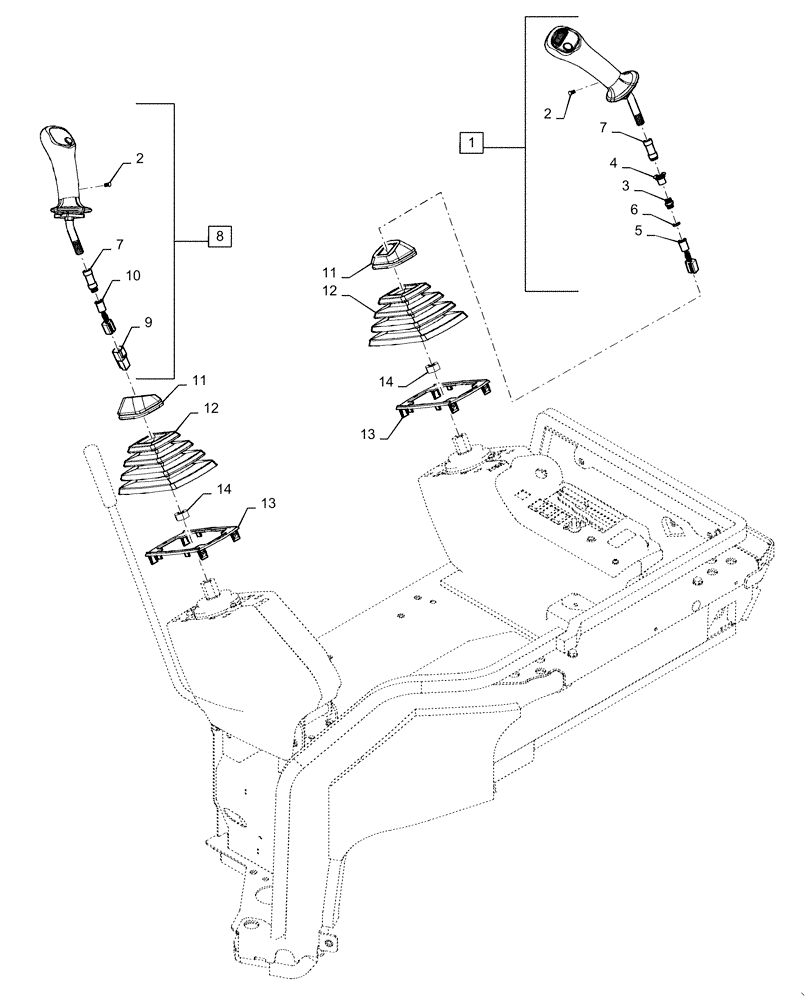

Запчасти Case CX36B (35.355.AK[01]) - GRIP, ASSY, NIBBLER & BREAKER, HAND CONTROL PROPORTIONAL (35) - HYDRAULIC SYSTEMS

1

PS03M01184F1

GRIP

Assy, Nibble & Breaker Proportional, (RH with N&B Prop and 1 Push Button) Incl 2 - 7

1шт.

2

ZS32T30016

SELF-TAP SCREW

Cross

8шт.

3

EN52S01001D6

HYD CONNECTOR

Housing

1шт.

4

EN52S01005D6

HOLDER

1шт.

5

PW03M01958S885

TERMINAL CONNECTOR

6шт.

6

PW03M01958S888

SEAL

6шт.

7

PW03M01958S891

TUBE

2шт.

8

YN03M02123F2

HANDLE GRIP

Assy, Nibble & Breaker Proportional, (LH with 1 Push Button Switch) Incl 2, 7, 9, 10

1шт.

9

PW03M01959S886

HOUSING

1шт.

10

PW03M01959S887

TERMINAL CONNECTOR

2шт.

11

YN03M01503P1

BOOT

2шт.

12

YN03M01505P1

BOOT

2шт.

13

YN03M01328P2

PLATE

2шт.

14

ZN18C14011

NUT

2шт.
