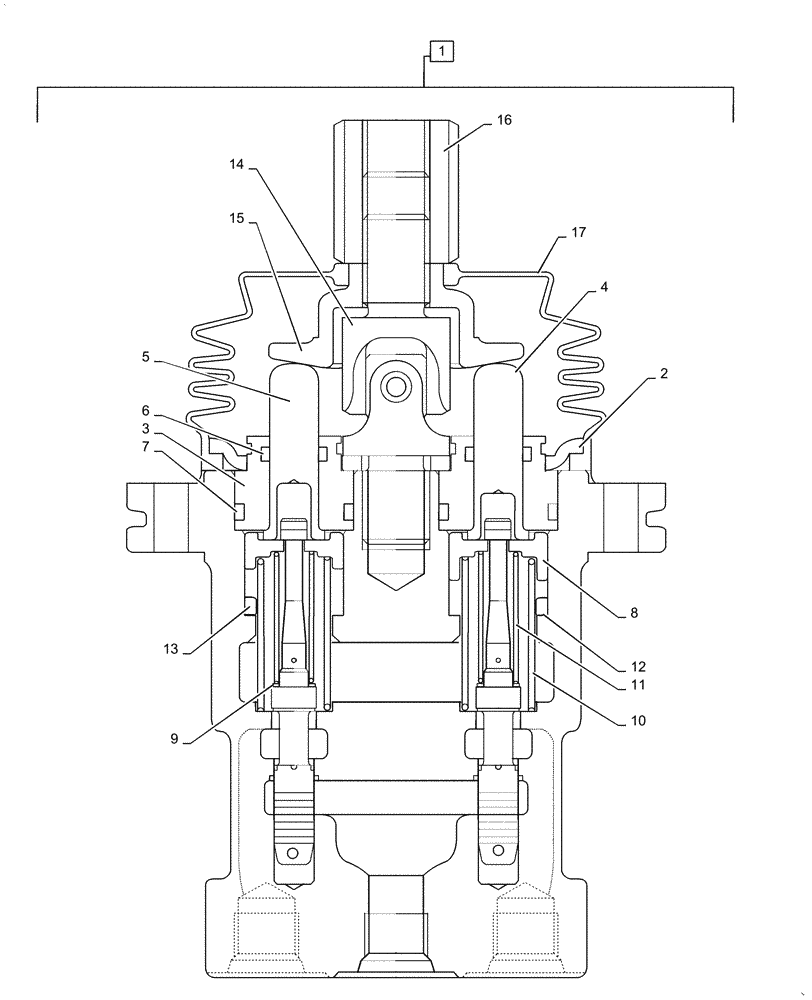

Запчасти Case CX36B (35.355.AH[06]) - PILOT VALVE, ANGLE, DOZER (35) - HYDRAULIC SYSTEMS

1

PY30V00066F1

PILOT VALVE

Assy, Angle Dozer, Incl 2 - 17

1шт.

2

YT30V00008S151

PLATE

1шт.

3

2436U1277S211

PLUG

4шт.

4

PY30V00066S212

ROD

Push

2шт.

5

PY30V00066S006

ROD

Push

2шт.

6

2436U1277S213

SEAL

4шт.

7

ZD12P02000

O-RING,2.4mm Thk x 19.8mm ID, 90 Duro

4шт.

8

PX30V00043S503

SEAT

4шт.

9

2436U1277S217

WASHER

4шт.

10

PY30V00066S221

SPRING

4шт.

11

PY30V00066S241

SPRING

4шт.

12

PY30V00066S251

SPACER

2шт.

13

PY30V00066S014

SPACER

2шт.

14

2436U2581S301

FLEXIBLE JOINT

1шт.

15

YT30V00008S302

PLATE

1шт.

16

PH30V00002S312

NUT

1шт.

17

YT30V00008S501

BOOT

Cover

1шт.
