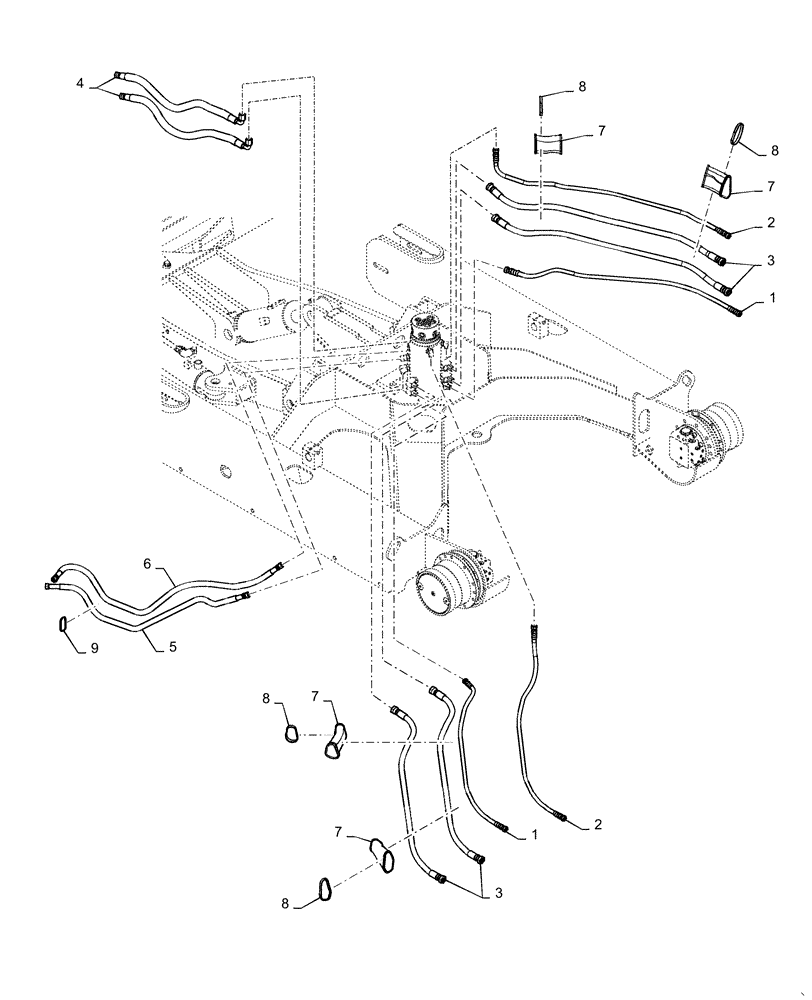

Запчасти Case CX36B (35.353.AE[02]) - HYD. LINE, LOWER, ANGLE, DOZER (35) - HYDRAULIC SYSTEMS

1

HX23L04096DX

HOSE

LH Travel Motor D1 - G, RH Travel Motor D2 - G

2шт.

2

HX23L04115DX

HOSE

LH Travel Motor P - P, RH Travel Motor P - P

2шт.

3

HX25L08098DY

HOSE

LH Travel Motor: Top Fwd A - A, Bottom Back B - A, RH Travel Motor: Top Fwd B - D, Bottom Back A - B

4шт.

4

PX02H01006D1

HOSE

Dozer H - E, R - F

2шт.

5

PH02H01052D6

HOSE

Angle Dozer H - H

1шт.

6

PH02H01052DG

HOSE

Angle Dozer R - G

1шт.

7

PY02B01168P1

GROMMET

4шт.

8

PY01P01043D8

CABLE TIE,102mm L

Clip

4шт.

9

PY01P01043D5

CABLE TIE,301mm L

Clip

1шт.
