Запчасти Case CX36B (35.352.AL[03]) - MOTOR, ASSY, SWING - ASN PX17-40001 - 40454 (35) - HYDRAULIC SYSTEMS

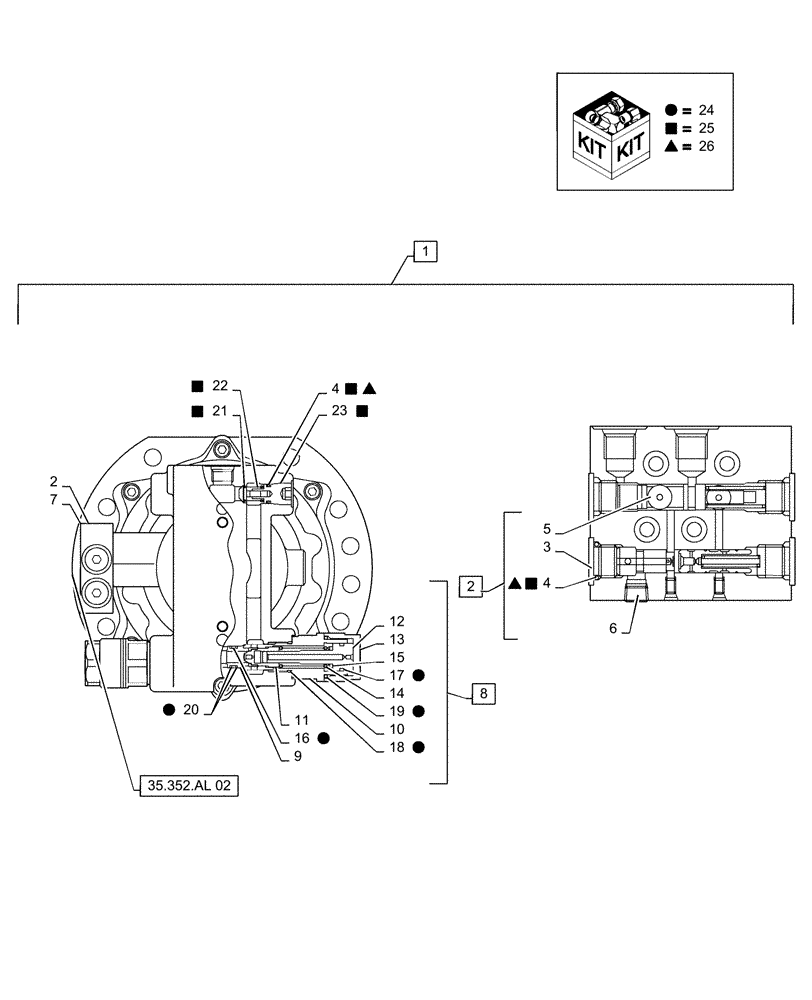

Схема запчастей Case CX36B - (35.352.AL[03]) - MOTOR, ASSY, SWING - ASN PX17-40001 - 40454 (35) - HYDRAULIC SYSTEMS
3
25
17
35.352.al 02
25
14
21
24
26
19
8
12
13
25
25
26
16
11
24
4
23
1
5
24
9
25
10
4
26
25
15
6
24
24
24
7
20
2
25
26
18
22
2
24

Артикул

Название

Примечание

Количество

1

PX15V00029F1

HYDRAULIC MOTOR

Assy, Swing, Incl 2 - 23

1шт.

2

PY64H00003F1

HYDRAULIC VALVE

Assy, Incl 3 - 6

1шт.

3

PM22V00004S006

PLUG

4шт.

4

ZD12P01100

O-RING

6шт.

5

ZD12P00700

O-RING,1.6mm Thk x 6.8mm ID, 90 Duro

2шт.

6

PY64H00003S512

PLUG

1шт.

7

ZS23C06015

SCREW,Hex Socket Head, M6 x 15mm

Cap

4шт.

8

PX22V00008F1

VALVE PRESSURE RELIE

Incl 9 - 20

2шт.

9

NSS

NOT SOLD SEPARAT

Seat, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Retainer, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Poppet, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Piston, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Cap, Incl in 1

1шт.

14

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

16

ZD12P01400

O-RING

1шт.

17

ZD12P01800

O-RING

1шт.

18

ZD12P02200

O-RING

1шт.

19

ZD12P02800

O-RING

1шт.

20

ZD85P01400

RING

Back-Up

2шт.

21

NSS

NOT SOLD SEPARAT

Check Valve, Incl in 1, 26

2шт.

22

NSS

NOT SOLD SEPARAT

Plug, Incl in 1, 26

2шт.

23

NSS

NOT SOLD SEPARAT

Spring, Incl in 1, 26

2шт.

24

PY22V00009R100

REPAIR KIT

Incl 16 - 19 (Qty 1), 20 (Qty 2)

1шт.

25

PX15V00029R630

REPAIR KIT

Incl 4, 21 - 23

1шт.

26

PY15V00014R660

REPAIR KIT

Incl 4

1шт.

Выбрано товаров: 26
