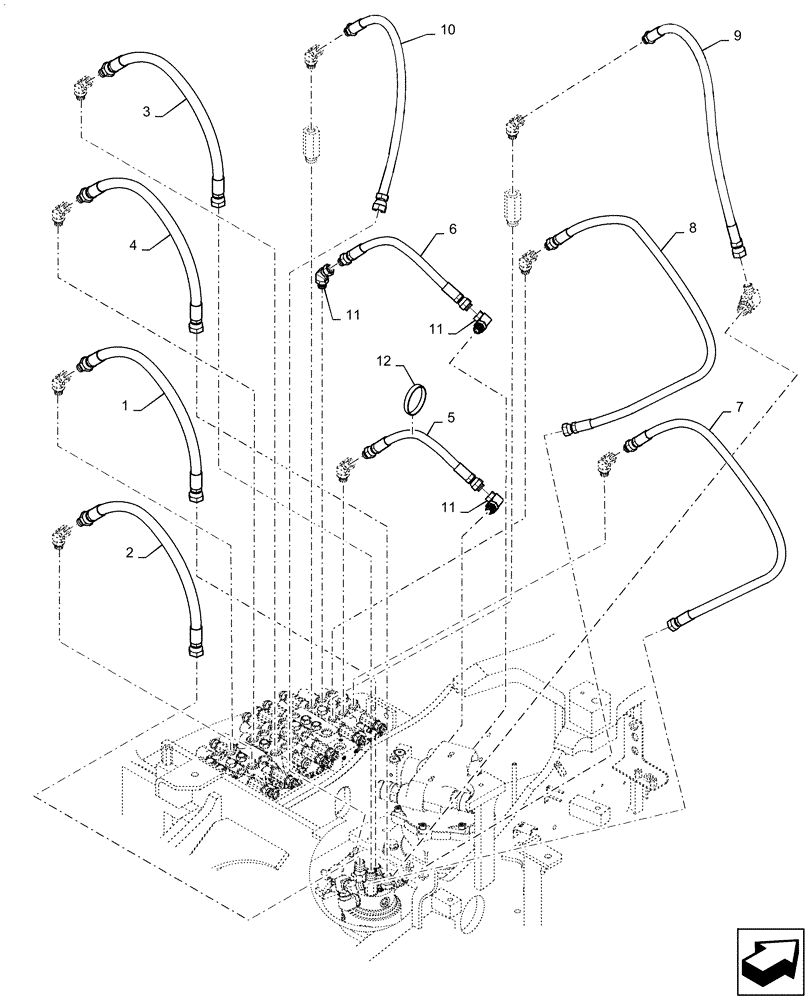

Запчасти Case CX36B (35.310.AJ[06]) - HYD. LINE, UPPER, NIBBLER & BREAKER, ANGLE, DOZER (35) - HYDRAULIC SYSTEMS

1

PS03H01004D5

HOSE

C/V B8 - S/J C

1шт.

2

PS03H01004D4

HOSE

C/V A8 - S/J A

1шт.

3

PS03H01004D3

HOSE

C/V B7 - S/J D

1шт.

4

LE03H01338DH

HOSE

C/V A7 - S/J B

1шт.

5

LE03H01339DV

HOSE

C/V B2 - S/M A

1шт.

6

LE03H01339DR

HOSE

C/V A2 - S/M B

1шт.

7

LE03H01339DT

HOSE

C/V B1 - S/J E

1шт.

8

LE03H01339DS

HOSE

C/V A1 - S/J F

1шт.

9

PS64H01030D5

HOSE

C/V A3 - S/J H

1шт.

10

PS64H01030D6

HOSE

C/V B3 - S/J G

1шт.

11

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

7шт.

12

PY01P01043D8

CABLE TIE,102mm L

Clip

4шт.
