Запчасти Case CX36B (35.310.AJ[02]) - HYD. LINE, UPPER, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

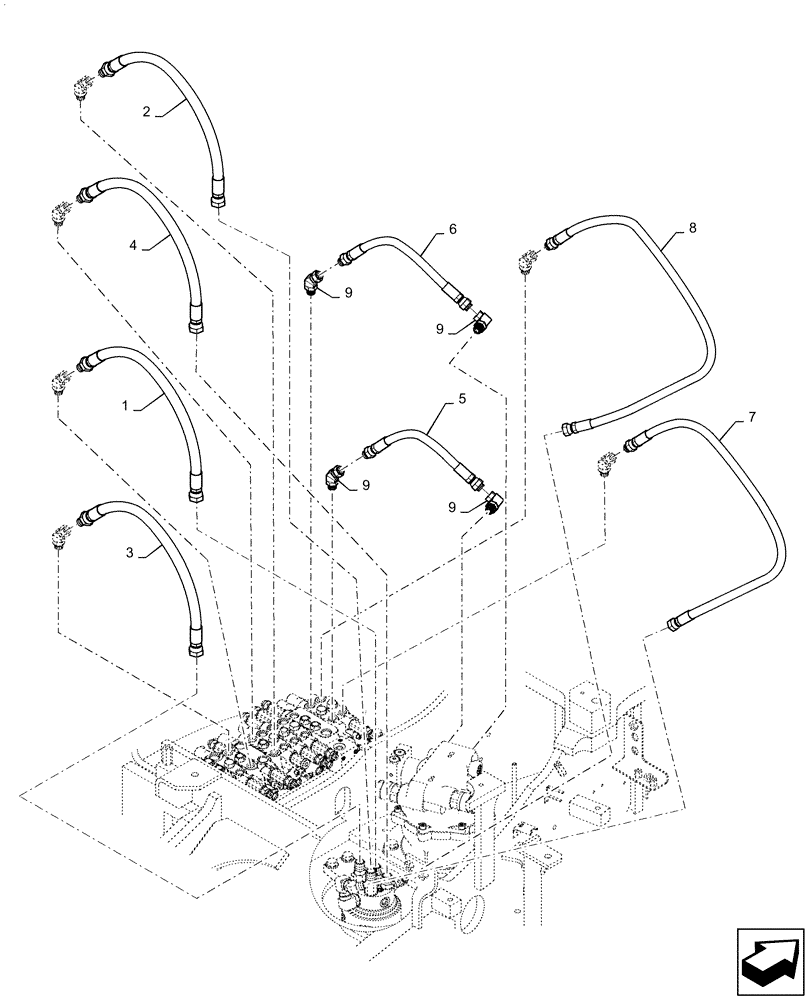

Схема запчастей Case CX36B - (35.310.AJ[02]) - HYD. LINE, UPPER, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS
9
3
1
2
5
4
7
9
6
8
9
9

Артикул

Название

Примечание

Количество

1

LE03H01338DH

HOSE

C/V B7 - S/J C

1шт.

2

LE03H01338DW

HOSE

C/V B6 - S/J D

1шт.

3

LE03H01338DT

HOSE

C/V A7 - S/J A

1шт.

4

LE03H01338DU

HOSE

C/V A6 - S/J B

1шт.

5

LE03H01339DV

HOSE

C/V B2 - S/M A

1шт.

6

LE03H01339DR

HOSE

C/V A2 - S/M B

1шт.

7

LE03H01339DD

HOSE

C/V B1 - S/J E

1шт.

8

LE03H01339DE

HOSE

C/V A1 - S/J F

1шт.

9

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

1шт.

Выбрано товаров: 9
