Запчасти Case CX36B (35.310.AJ[01]) - HYD. LINE, UPPER, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

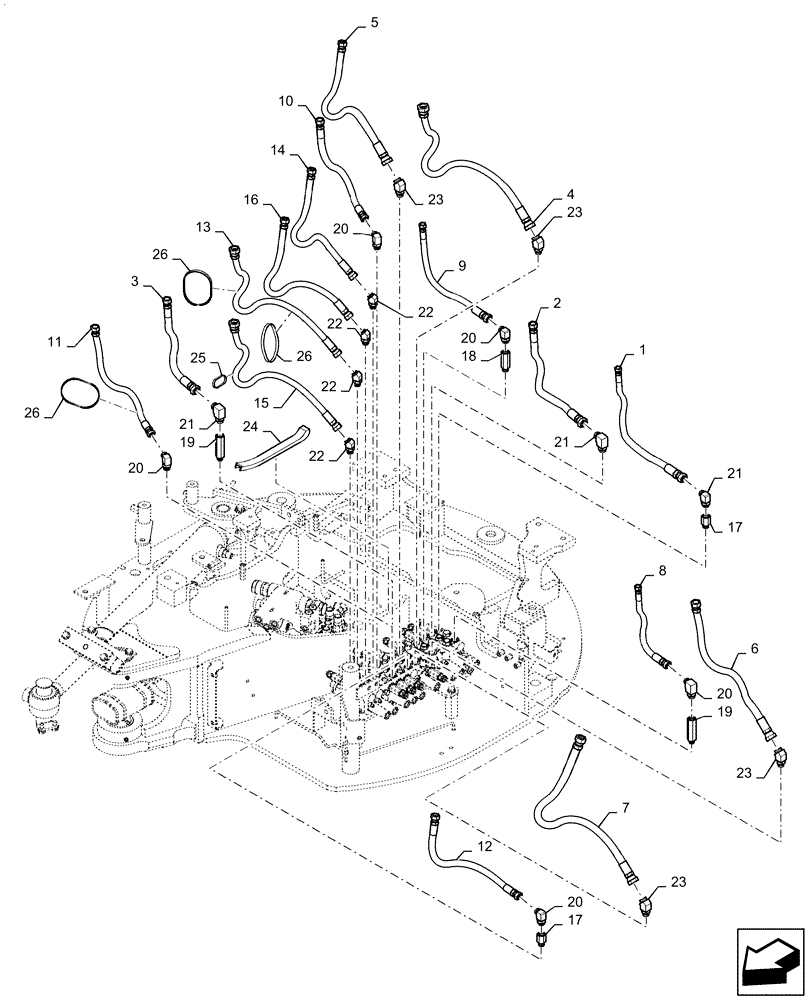

Схема запчастей Case CX36B - (35.310.AJ[01]) - HYD. LINE, UPPER, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS
19
4
21
2
25
22
21
17
14
20
3
23
23
12
13
10
22
1
23
26
7
5
6
8
16
20
9
26
18
26
24
15
11
22
22
20
17
20
19
23
20
21

Артикул

Название

Примечание

Количество

1

LE03H01327DN

HOSE

C/V B10 - Bucket H

1шт.

2

LE03H01327DP

HOSE

C/V B9 - Boom H

1шт.

3

LE03H01327DK

HOSE

C/V A3 - Arm H

1шт.

4

LE03H01338DH

HOSE

C/V B7 - S/J C

1шт.

5

LE03H01338DW

HOSE

C/V B6 - S/J D

1шт.

6

LE03H01338DT

HOSE

C/V A7 - S/J A

1шт.

7

LE03H01338DU

HOSE

C/V A6 - S/J B

1шт.

8

PX03H01053DD

HOSE

C/V A10 - Bucket R

1шт.

9

PX03H01053DE

HOSE

C/V BB - Boom R

1шт.

10

PX03H01053D3

HOSE

C/V B3 - Arm R

1шт.

11

PS03H01002D8

HOSE

C/V B5 - Swing H

1шт.

12

PS03H01002D9

HOSE

C/V A5 - Swing R

1шт.

13

LE03H01339DV

HOSE

C/V B2 - S/M A

1шт.

14

LE03H01339DR

HOSE

C/V A2 - S/M B

1шт.

15

LE03H01339DD

HOSE

C/V B1 - S/J E

1шт.

16

LE03H01339DE

HOSE

C/V A1 - S/J F

1шт.

17

2444Z3546

HYD CONNECTOR

2шт.

18

2444Z3711

HYD CONNECTOR

1шт.

19

HH25R06006G2

HYD CONNECTOR

2шт.

20

HH35S06006G1

90 ELBOW,90 Degree, 3/8" PF x 3/8" PF x 60mm L

7шт.

21

HH35S08006G1

90 ELBOW

3шт.

22

HH45S06006G1

45 ELBOW

4шт.

23

HH45S08006G1

45 ELBOW

4шт.

24

YN64H01068DK

RUBBER STRIP

1шт.

25

PY01P01043D5

CABLE TIE,301mm L

Clip

1шт.

26

PY01P01043D8

CABLE TIE,102mm L

Clip

4шт.

Выбрано товаров: 26
