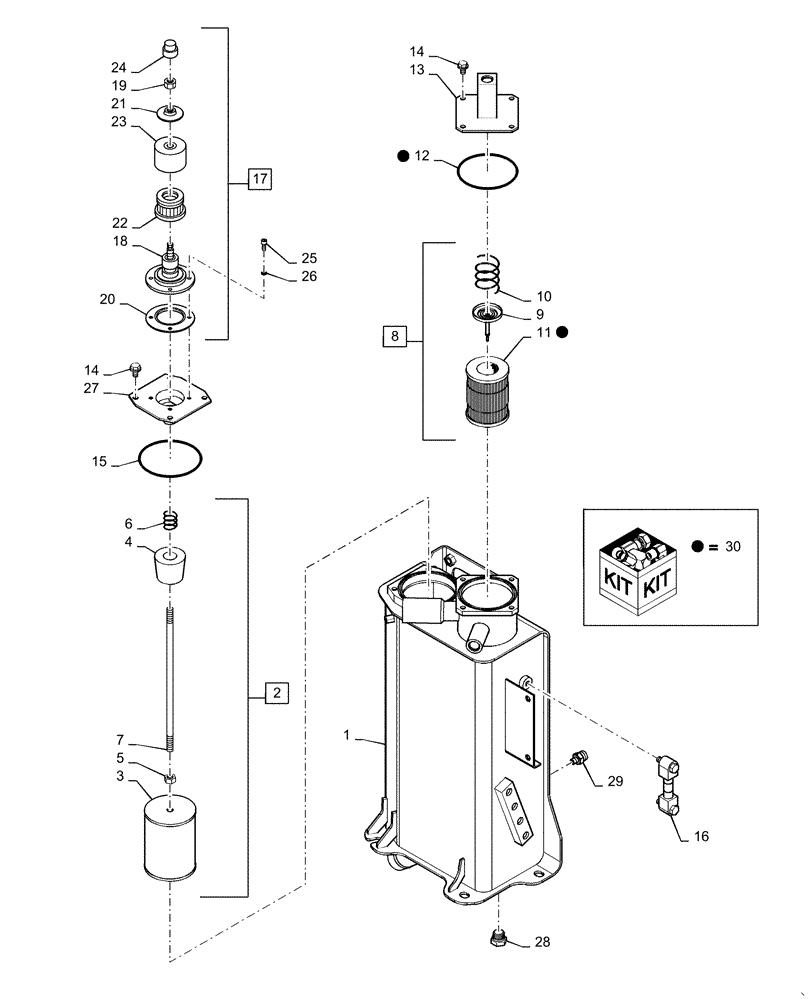

Запчасти Case CX36B (35.300.AQ[03]) - TANK, ASSY, HYD - ASN PX17-40002 (35) - HYDRAULIC SYSTEMS

1

PX33H00006P2

TANK

1шт.

2

PW50V00015F6

FILTER STRAINER

Suction, Incl 3 - 7

1шт.

3

PM50V00017S001

FILTER STRAINER

1шт.

4

2446R176S2

HOLDER

1шт.

5

ZN11C10008

NUT

2шт.

6

2446R176S5

SPRING

1шт.

7

2446R345S3

BOLT

1шт.

8

PW52V01001F2

HYDRAULIC OIL FILTER

Element, Incl 9 - 11

1шт.

9

PW21V00004P1

VALVE

Check

1шт.

10

YR52V01001S004

SPRING

1шт.

11

YR52V01003P2

HYDRAULIC OIL FILTER

Element

1шт.

12

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

13

PX33H01024P1

FLANGE

, Serial Range: PX17-40002-PX17-40193

1шт.

13

PX33H01046P1

FLANGE

, Start Serial: PX17-40194

1шт.

14

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

8шт.

15

ZD11G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

1шт.

16

YN58S00009F3

GAUGE ASSY.

Level, Oil

1шт.

17

YN57V00002F4

BREATHER ASSY.

Incl 18 - 24

1шт.

18

2446U260S1

BODY

1шт.

19

2446U260S5

NUT

1шт.

20

2446U260S8

PACKING

1шт.

21

YN57V00002S007

IDENTITY PLATE

Caution

1шт.

22

YN57V00002S010

ELEMENT

1шт.

23

YN57V00002S011

COVER

1шт.

24

YN57V00002S012

CAP

1шт.

25

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

4шт.

26

ZW26K06000

LOCK WASHER

4шт.

27

PW33H01146P1

COVER

1шт.

28

ZE72X08000

PLUG

1шт.

29

ZE72X04000

PLUG

1шт.

30

PW52V01001R200

ELEMENT

Incl 11, 12

1шт.
