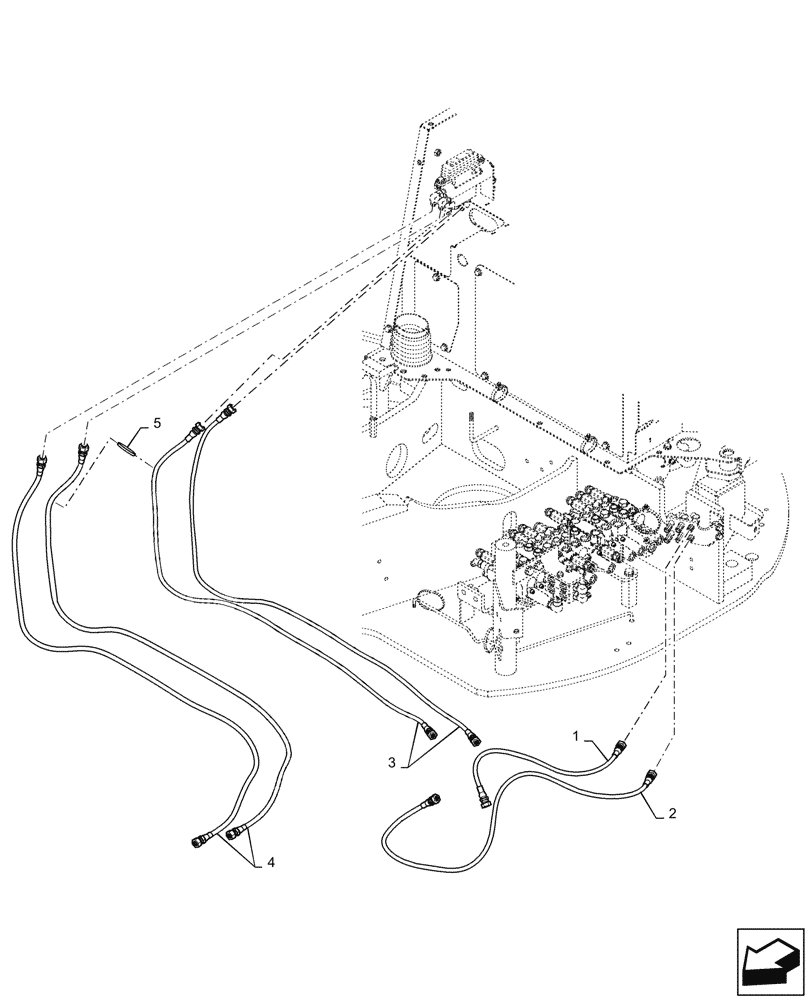

Запчасти Case CX31B (35.204.BJ[03]) - CONTROL, LINES, REMOTE - BHL MULTI (35) - HYDRAULIC SYSTEMS

1

HX23L03056DX

HOSE

Block 5 - C/V Pa1

1шт.

2

HX23L03115DX

HOSE ASSY.

Block 6 - C/V Pb1

1шт.

3

HX23L03135DX

HOSE

P/V 1 - Block 5, P/V 2 - Block 6

2шт.

4

HX24L04160DX

HOSE

P/V T - Block T, P/V P - Block P, Serial Range: PW16-80001-PW16-80190

2шт.

4

HX24L04160DX

HOSE

P/V T - Block T, Start Serial: PW16-80191

1шт.

4

HX23L04160DD

HOSE

P/V P - Block P, Start Serial: PW16-80191

1шт.

5

PY01P01043D5

CABLE TIE,301mm L

Clip

1шт.
