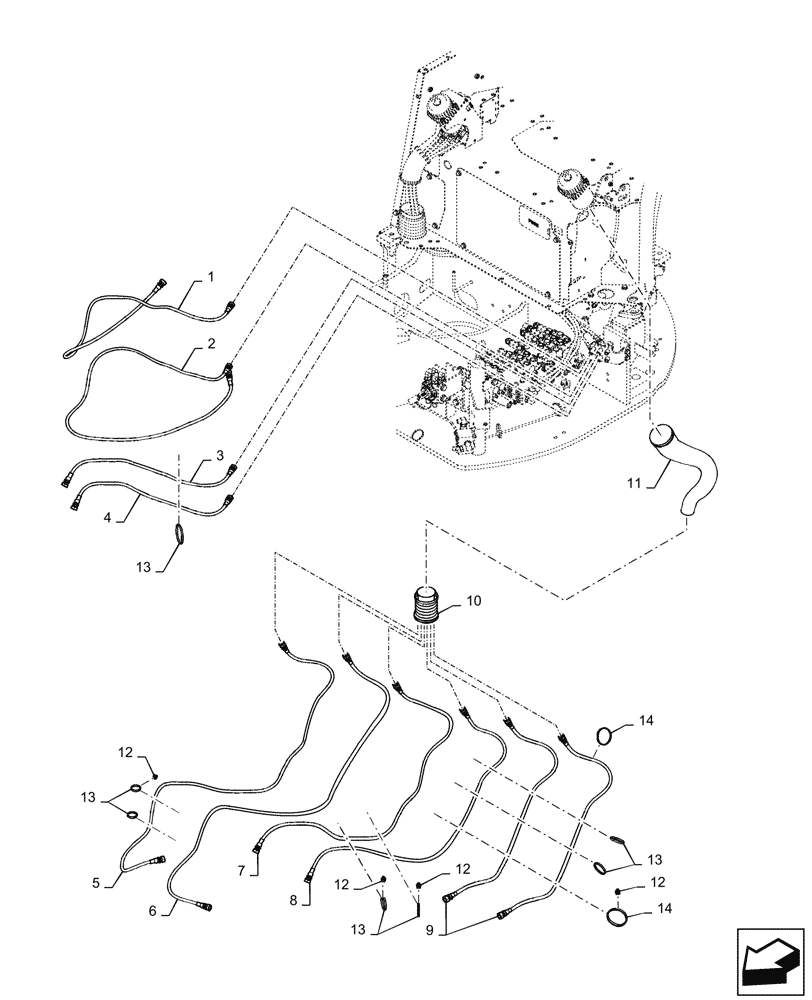

Запчасти Case CX31B (35.204.BJ[02]) - CONTROL, LINES, REMOTE - BHL MULTI (35) - HYDRAULIC SYSTEMS

1

HX23L03140DR

HOSE

Bucket, Red (Block 1 - C/V Pb10)

1шт.

2

HX23L03160DB

HOSE

Bucket, Blue (Block 2 - C/V Pa10)

1шт.

3

HX23L03072DG

HOSE

Boom, Green (Block 3 - Multi D)

1шт.

4

HX23L03068DH

HOSE

Boom, Gray (Block 4 - Multi B)

1шт.

5

HX23L03185DH

HOSE

Swing, Gray (P/V 5 - Shut/V B)

1шт.

6

HX23L03185DR

HOSE

Swing, Red (P/V 6 - Shut/V A)

1шт.

7

HX23L03140DB

HOSE

Arm, Blue (P/V 7 - Multi C)

1шт.

8

HX23L03140DG

HOSE

Arm, Green (P/V 8 - Multi A)

1шт.

9

HX24L04110DX

HOSE ASSY.

(P/V P - Block P) (P/V T - Block T), Serial Range: PW16-80001-PW16-80190

2шт.

9

HX24L04110DX

HOSE ASSY.

(P/V T - Block T), Start Serial: PW16-80191

1шт.

9

HX23L04110DD

HOSE

(P/V P - Block P), Start Serial: PW16-80191

1шт.

10

PH03M01250P1

BOOT

1шт.

11

PS68H01001D3

COVER

1шт.

12

YN13E01375P1

CLIP,M8 x 8.20mm Shank

4шт.

13

PY01P01043D5

CABLE TIE,301mm L

Clip, Serial Range: PW16-80001-PW16-80190

9шт.

13

PY01P01043D5

CABLE TIE,301mm L

Clip, Start Serial: PW16-80191

7шт.

14

PY01P01043D8

CABLE TIE,102mm L

Clip, Serial Range: PW16-80001-PW16-80190

2шт.

14

PY01P01043D8

CABLE TIE,102mm L

, Start Serial: PW16-80191

4шт.
