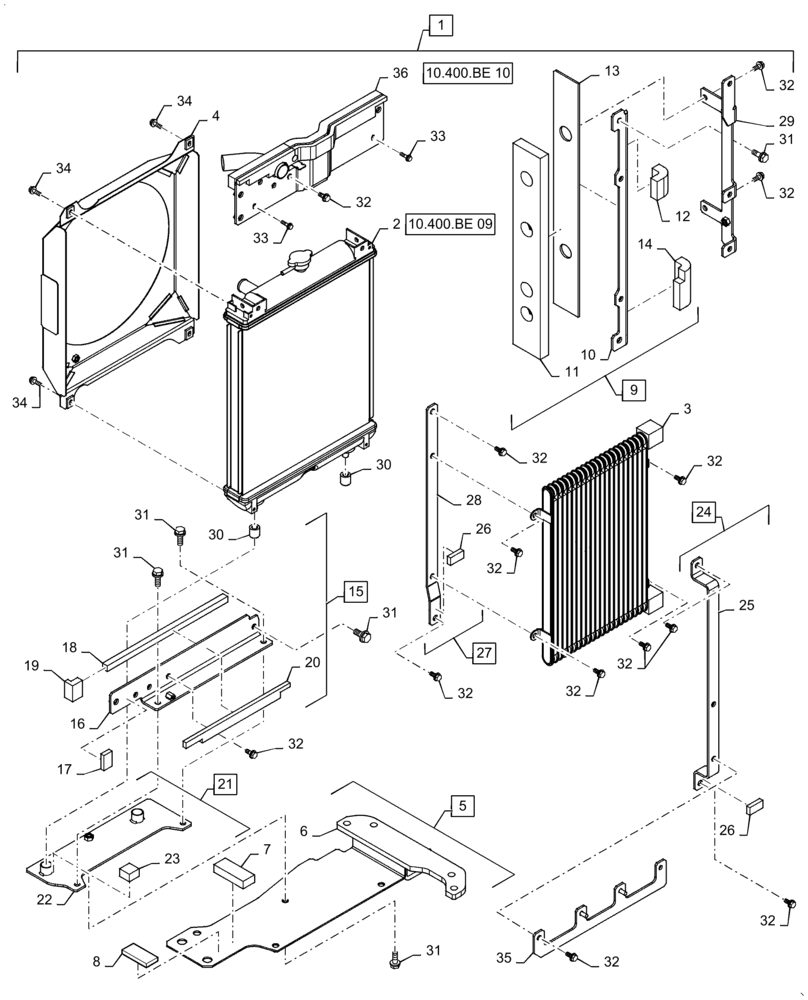

Запчасти Case CX31B (10.400.BE[08]) - RADIATOR, ASSY (10) - ENGINE

1

PX05P00027F2

RADIATOR

Assy, Incl 2 - 36

1шт.

2

PX05P00025F1

RADIATOR

1шт.

3

PX53V00003P1

OIL COOLER

1шт.

4

PX05P01144P1

SHROUD

1шт.

5

PX05P01051F1

BRACKET

Assy, Incl 6 - 8

1шт.

6

PX05P01150P2

BRACKET

1шт.

7

PX05P01208P1

INSULATION

1шт.

8

PX05P01215P1

RUBBER STRIP

1шт.

9

PX05P01065F1

BRACKET

Assy, Incl 10 - 14

1шт.

10

PX05P01066P1

BRACKET

1шт.

11

PX05P01068P1

INSULATION

1шт.

12

PX05P01205P2

RUBBER STRIP

1шт.

13

PX05P01129P1

INSULATION

1шт.

14

PX05P01213P2

RUBBER STRIP

1шт.

15

PX05P01070F2

BRACKET

Assy, Incl 16 - 20

1шт.

16

PX05P01182P1

BRACKET

1шт.

17

PX05P01188P1

INSULATION

1шт.

18

PX05P01212P1

INSULATION

1шт.

19

PX05P01186P1

INSULATION

1шт.

20

PX05P01189P1

INSULATION

1шт.

21

PX05P01169F1

BRACKET

Assy, Incl 22, 23

1шт.

22

PX05P01157P1

BRACKET

1шт.

23

PX05P01170P1

INSULATION

1шт.

24

PX05P01124F1

BRACKET

Assy, Incl 25, 26

1шт.

25

PX05P01173P1

BRACKET

1шт.

26

PS05P01045D3

INSULATION

2шт.

27

PX05P01125F2

BRACKET

Assy, Incl 26, 28

1шт.

28

PX05P01122P1

BRACKET

1шт.

29

PX05P01177P1

BRACKET

1шт.

30

PH05P01144P1

RUBBER

2шт.

31

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

5шт.

32

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

14шт.

33

ZM73C06025

BOLT,M6x25mm - Course Thread

Sems

2шт.

34

ZM73C06020

BOLT,M6x20mm - Course Thread

Sems

4шт.

35

PX05P01190P1

BRACKET

1шт.

36

PX05P01058F2

BRACKET

Assy

1шт.
